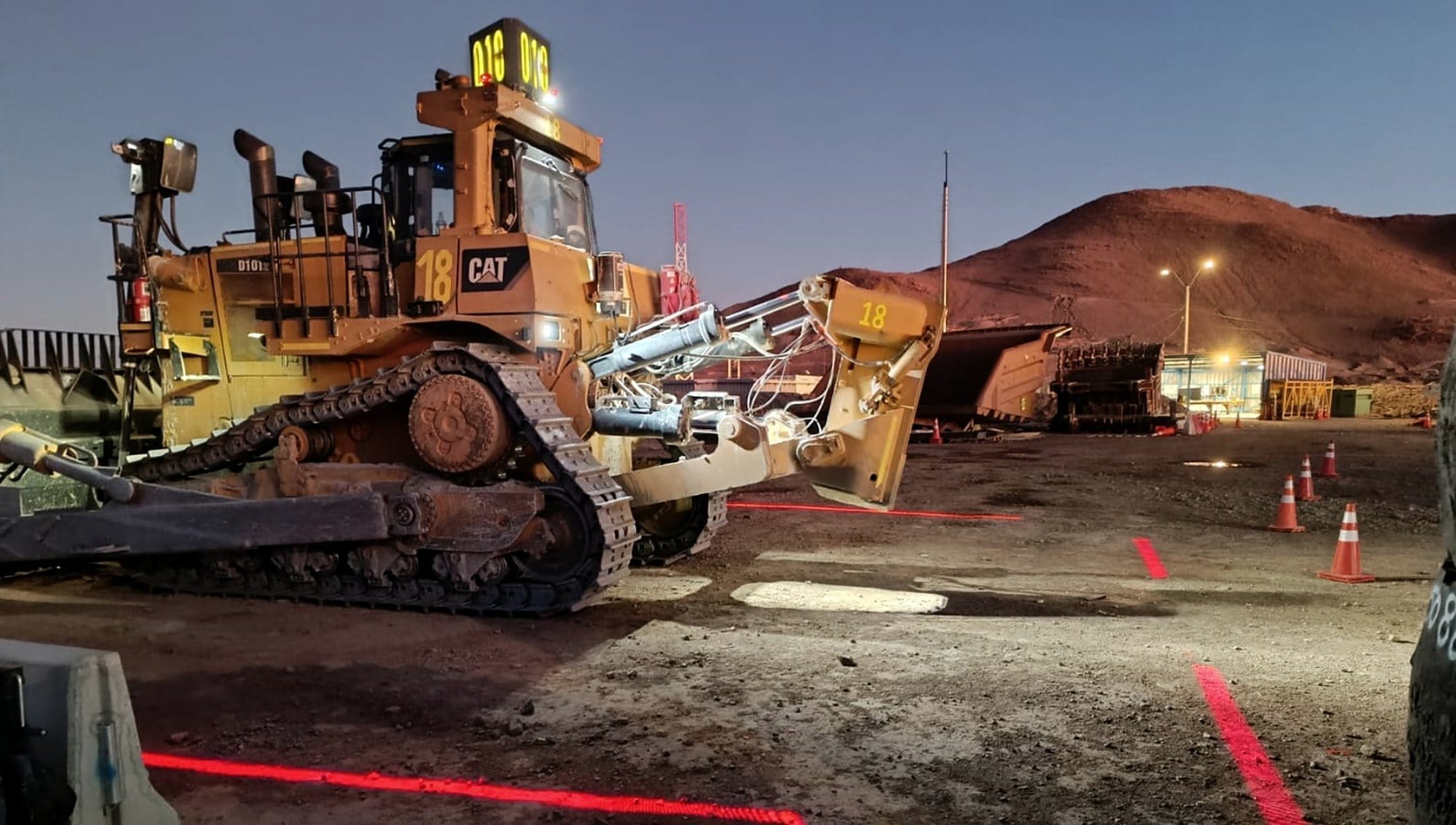

Track dozer with a red Safety Halo™ laser line on the ground

Safety Halo™ · Incident Zero, Australia

Safety Halo™: laser and LED exclusion zones for machinery

Safety Halo™ is a laser or LED lighting system that projects the exclusion zone of mobile plant on the ground and moves with it, so pedestrians and operators know how far to stay back. Laser up to 50 m, IP68. Developed by Incident Zero in Australia, distributed in Peru by Endeavant.

Get the data sheetWhatsApp
3R laser reach
50m
LED per light
30W
Rating
IP68
Lights per kit
2–7

How it works

The machine's danger zone, projected on the ground

Safety Halo™ projects laser or LED light lines that mark an exclusion zone around the machine and travel with it. Its design starts from neuroscience: an obvious «red zone» triggers in operators and pedestrians the natural response to move away from danger. More in laser exclusion zones in mining.

  • Instinctive responseUnderstood regardless of language or education, with little training.
  • Clear, enforceable distanceIt sets exactly how far to stay from mobile plant.
  • Colour-blind visibleThe highly saturated laser line is also seen by people with red-green colour blindness.
  • Organises the operationGuides trucks to the right distance from the excavator and at ROM hoppers.

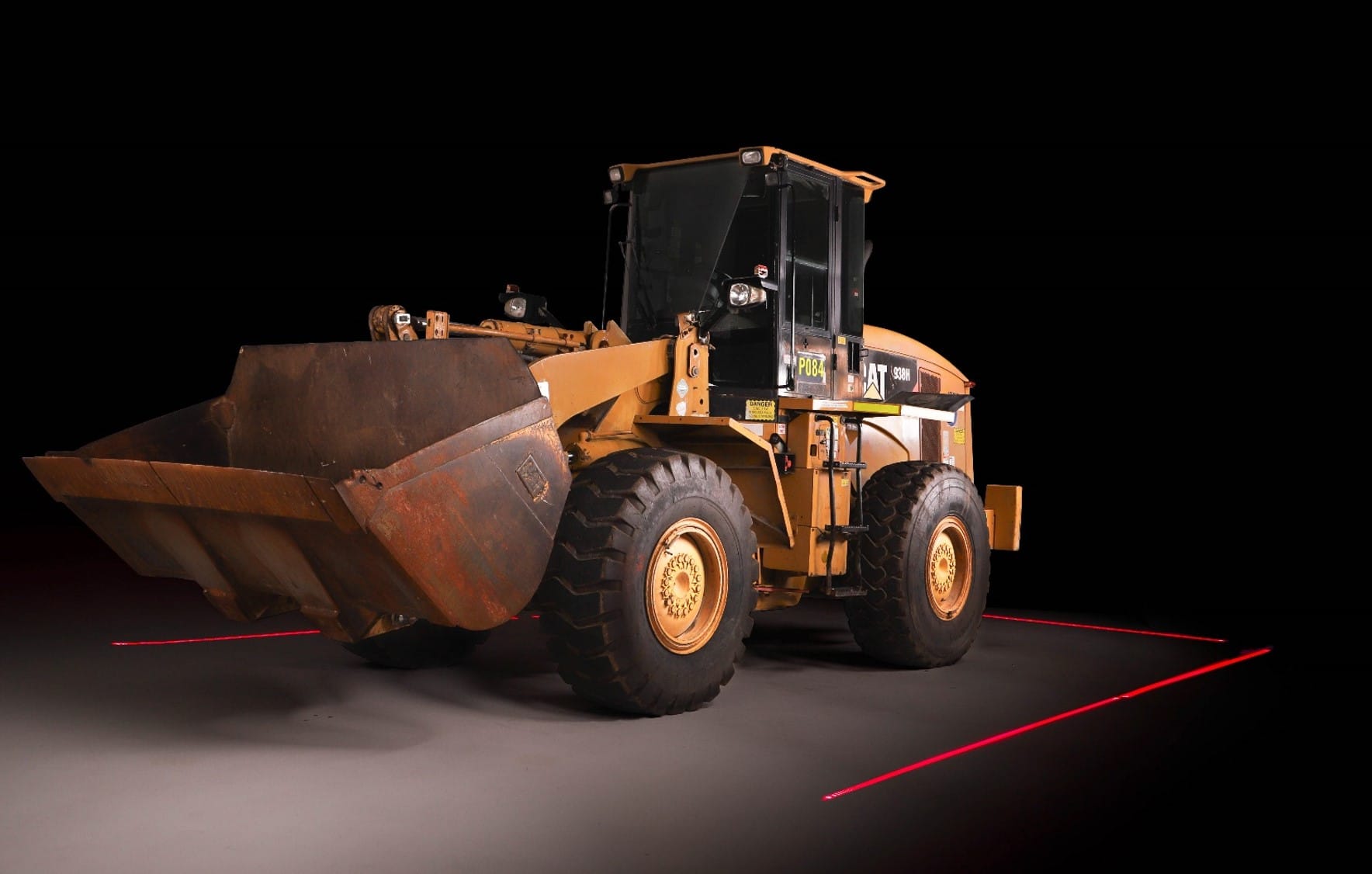

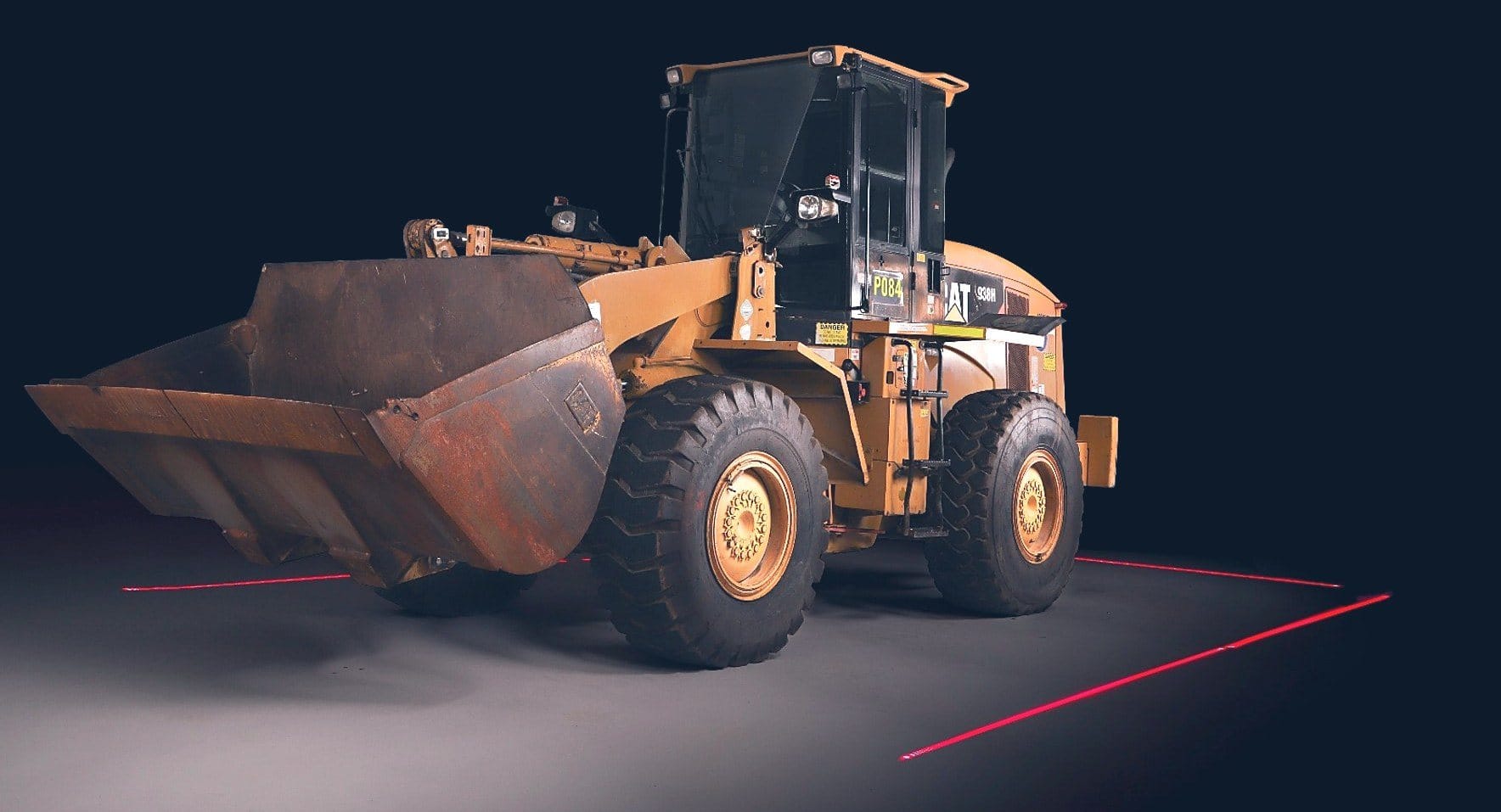

Front loader with a red laser exclusion zone around it

On every machine

What the zone looks like on each machine

The Safety Halo™ line marks on the ground the perimeter nobody should cross while the machine works: laser to project far and LED for an even zone around compact plant. Red marks danger, blue a presence warning and green a boundary or guide.

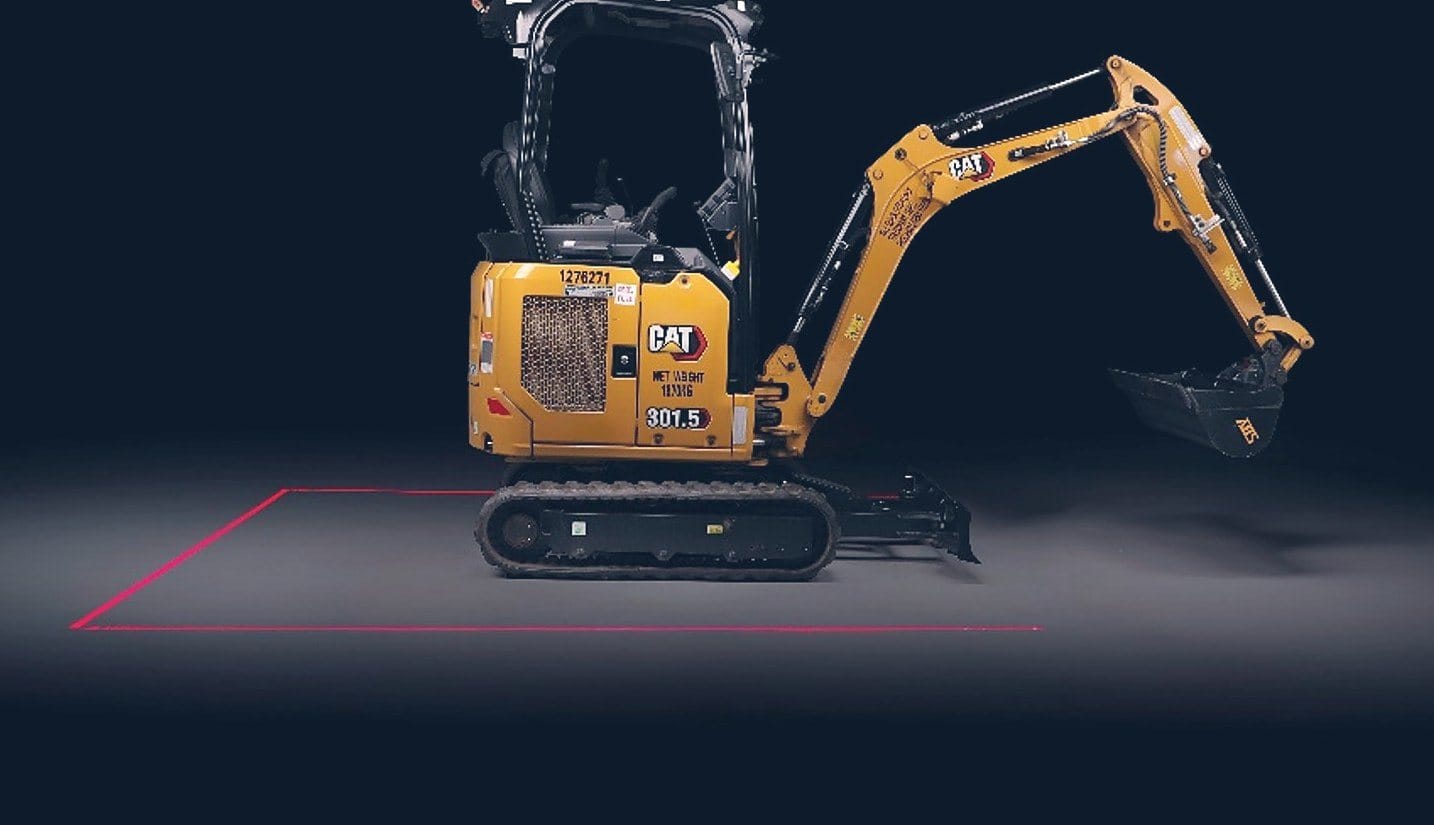

Excavator with red Safety Halo™ laser

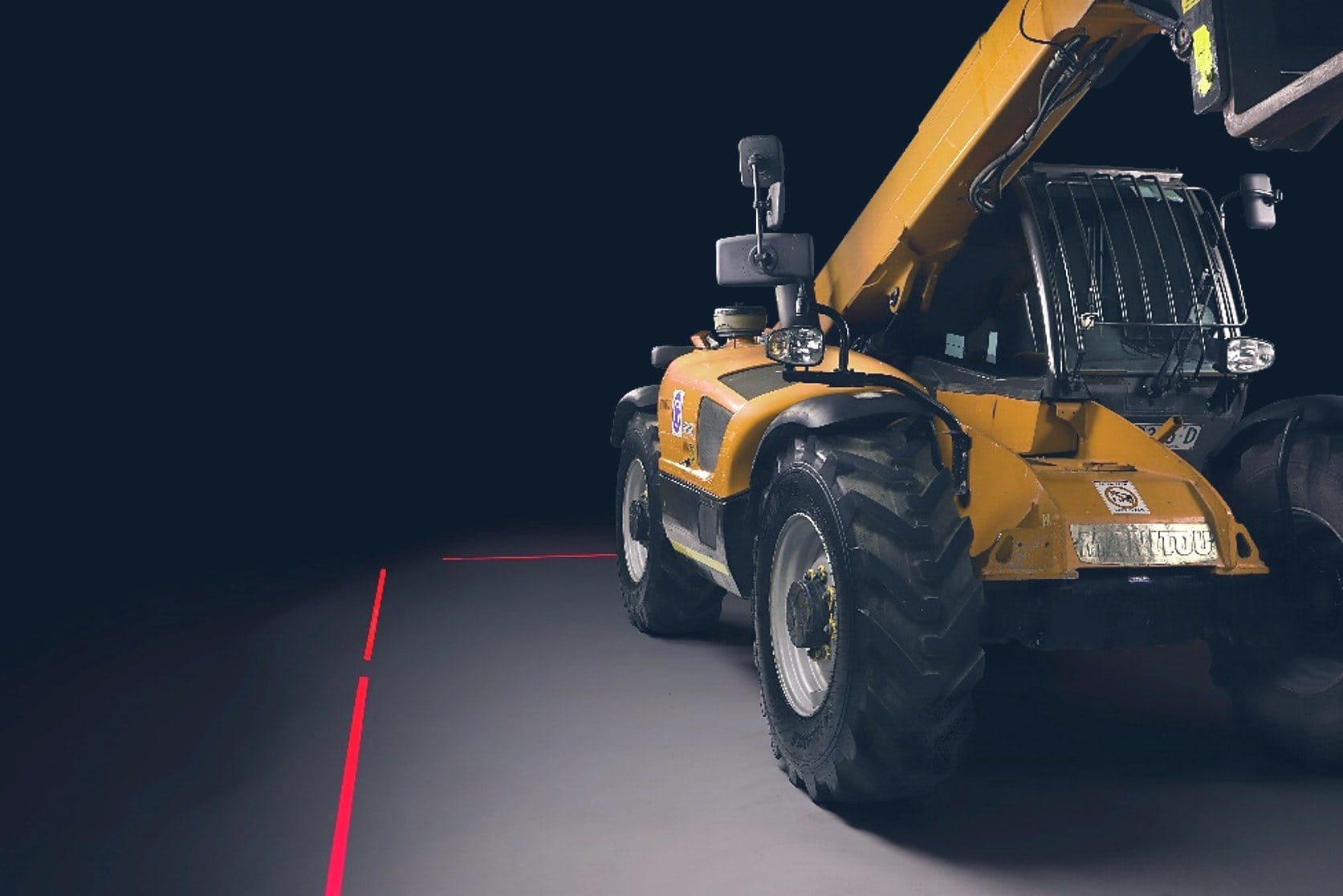

Telehandler with red laser

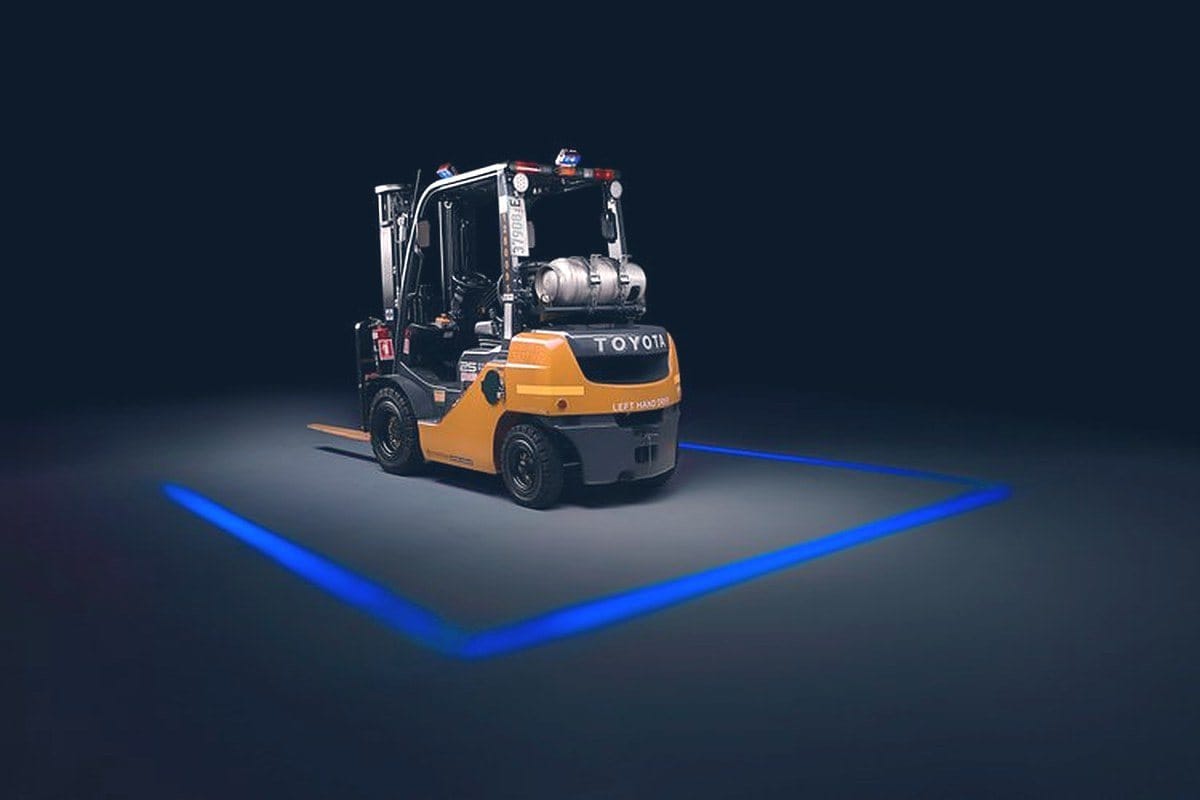

Forklift with a blue LED zone

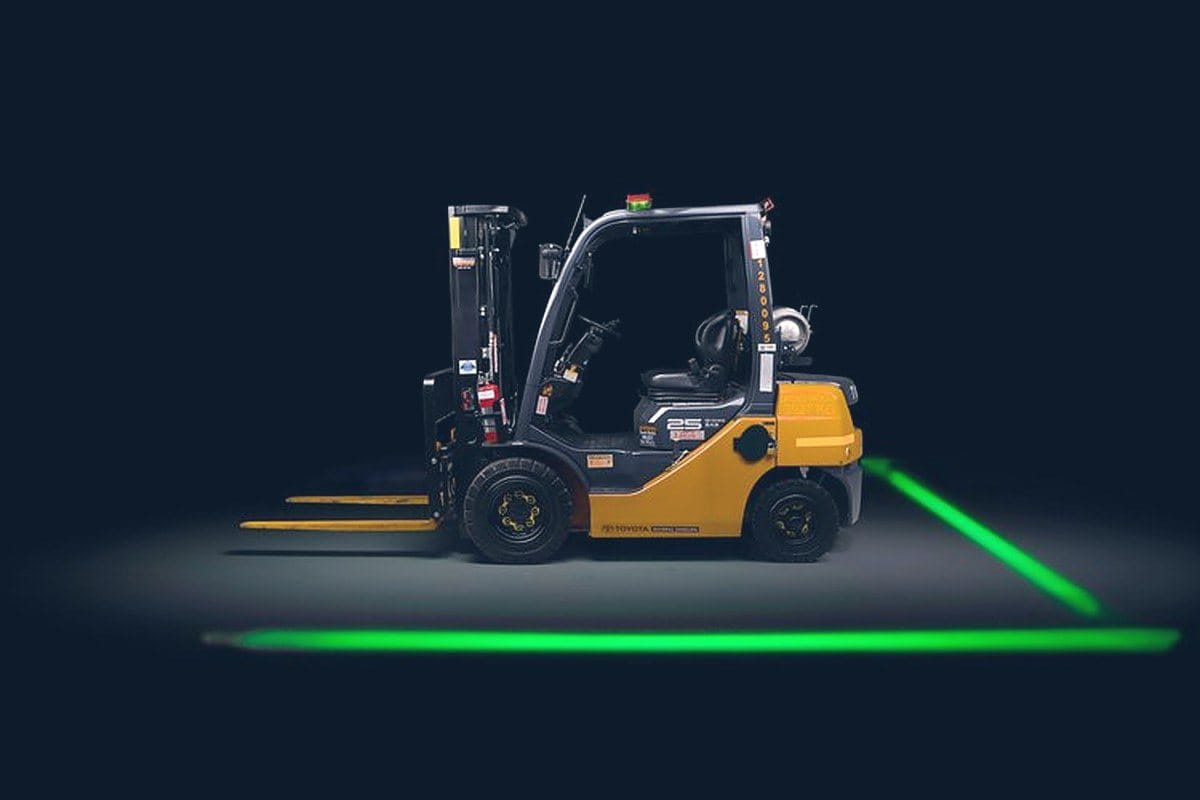

Forklift with a green LED line

Models

Laser or LED, by machine and distance

All three Safety Halo™ models share the principle and install kits, and come in red, green and blue. The choice depends on machine size and how far the zone must be projected: up to 50 m with Class 3R laser, up to 10 m with Class 2.

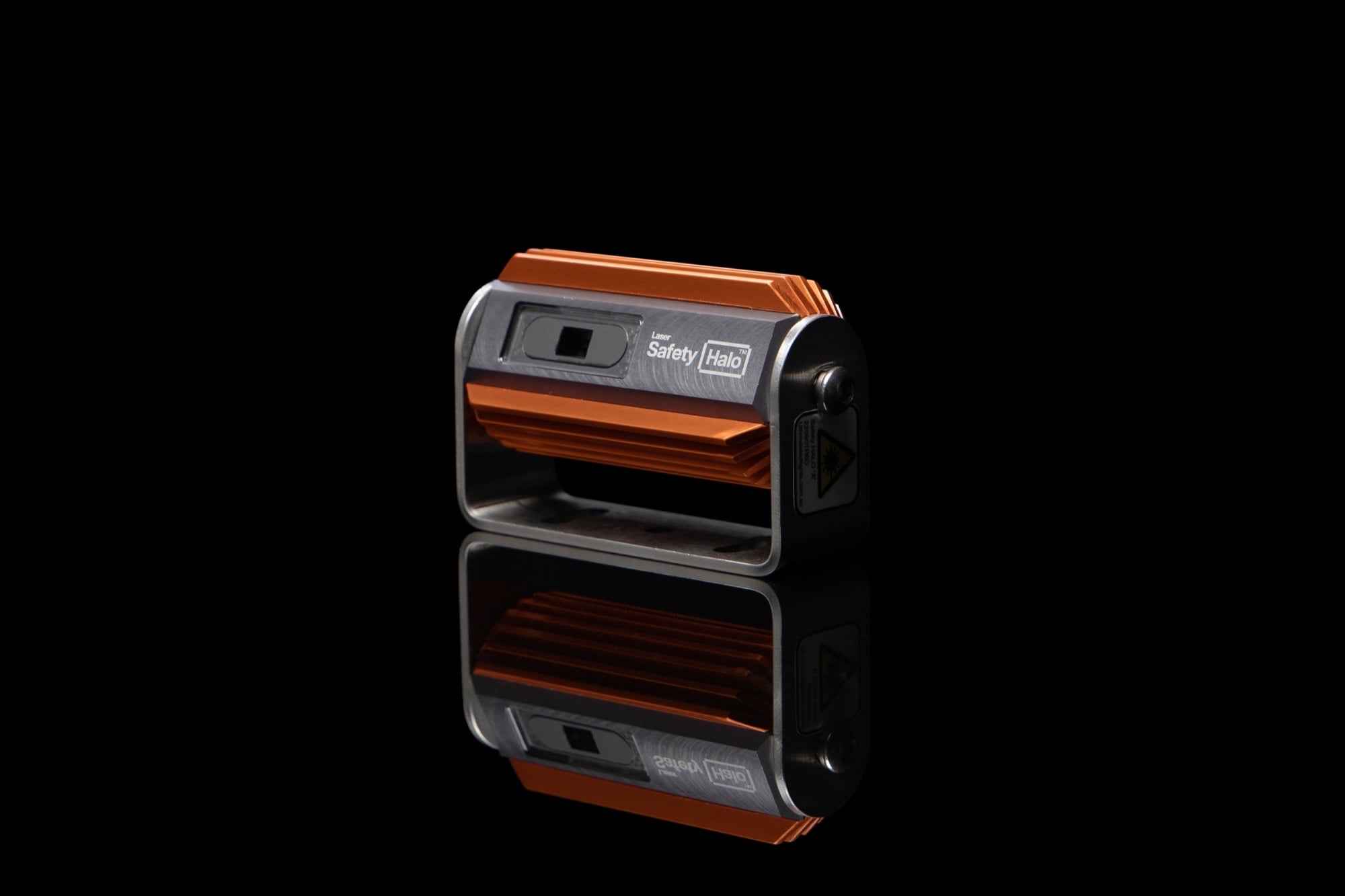

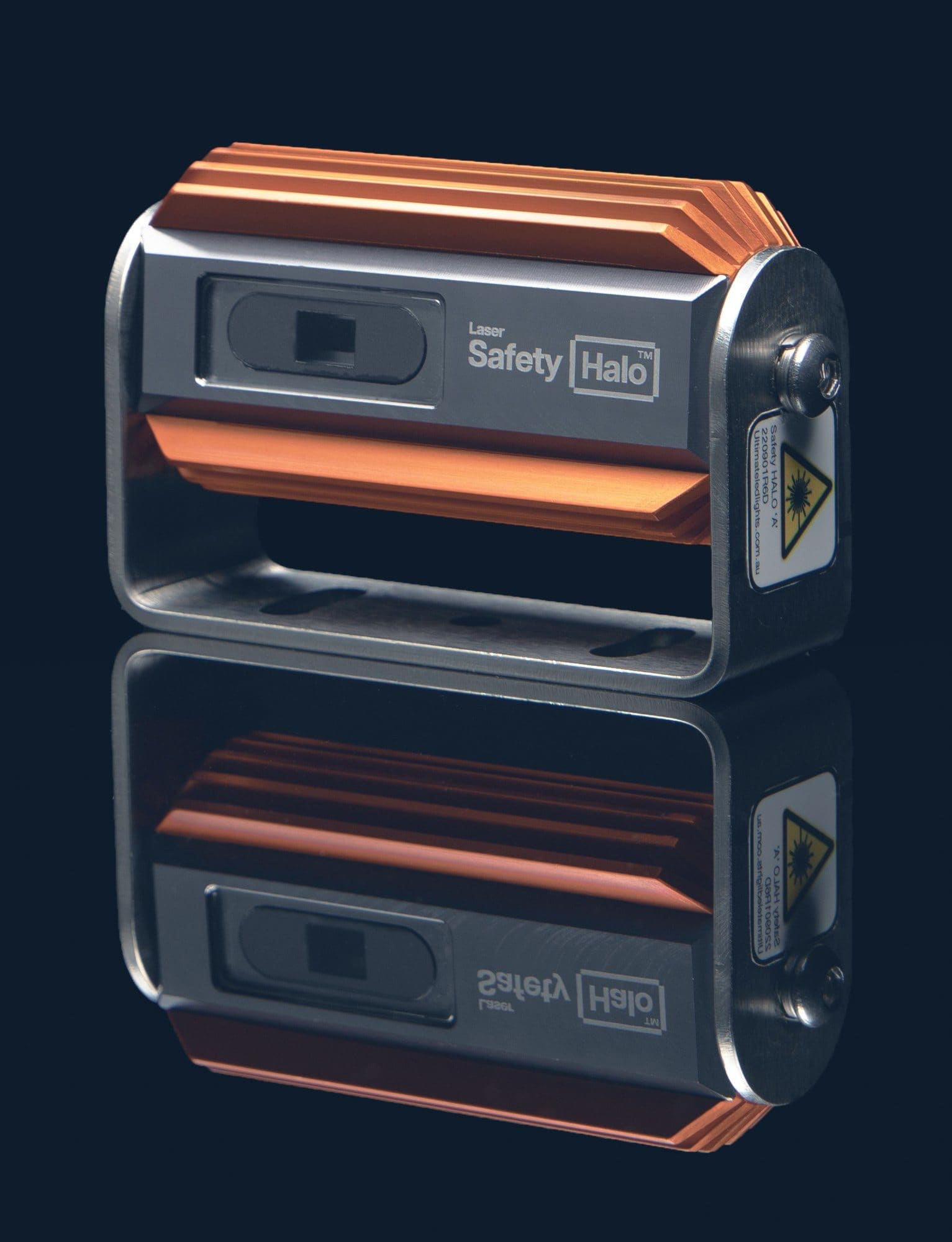

Laser Safety Halo™ · Class 3R
LSHx-B

Laser Safety Halo™ · Class 3R

< 50 m · 1 : 0.2 line

Long reach for shovels, draglines, dozers, loaders and trucks.

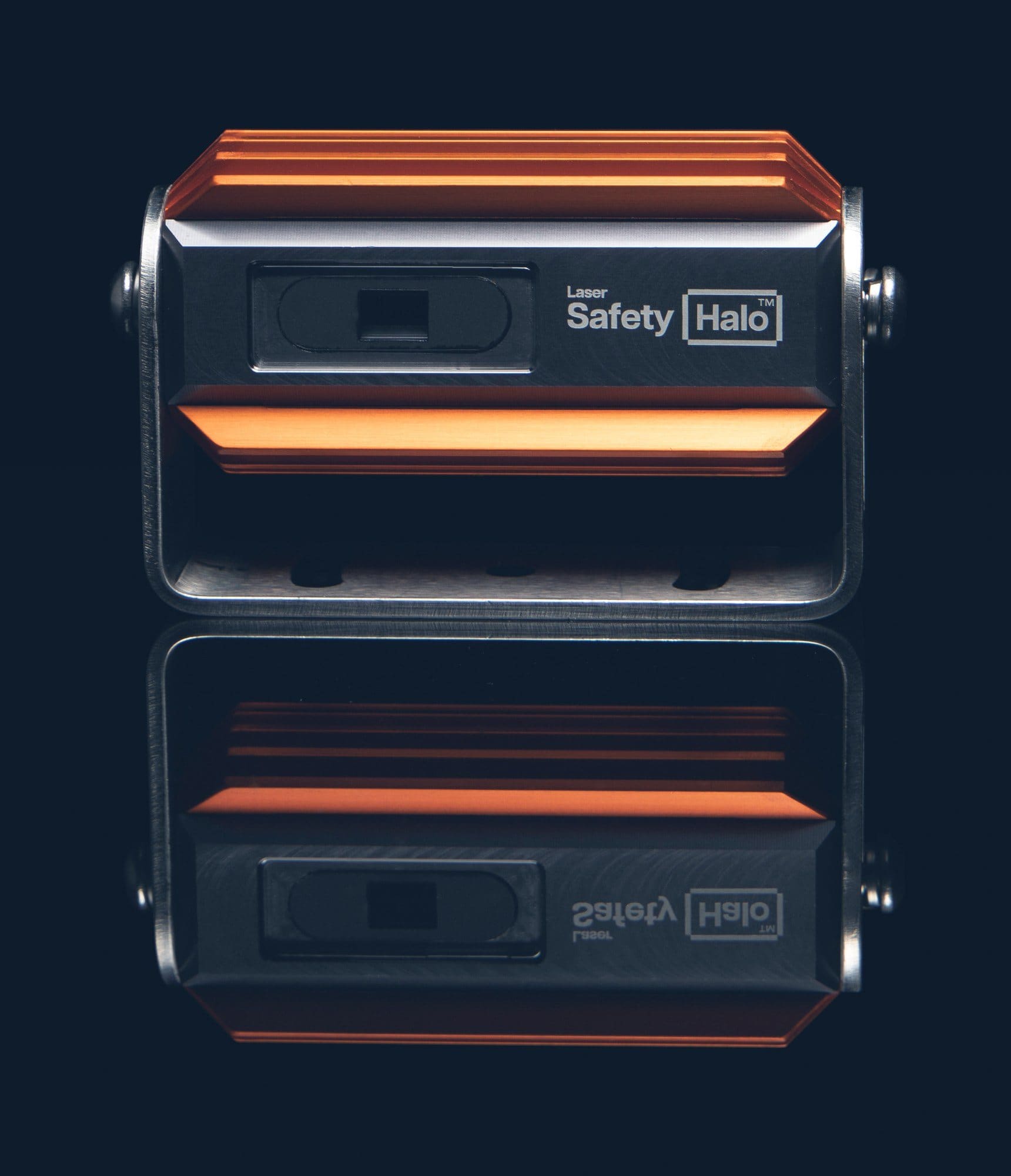

Laser Safety Halo™ · Class 2
LSHx-A

Laser Safety Halo™ · Class 2

< 10 m · 1 : 1 line

Mid reach: mounted 3 m high, it projects a 3 m line.

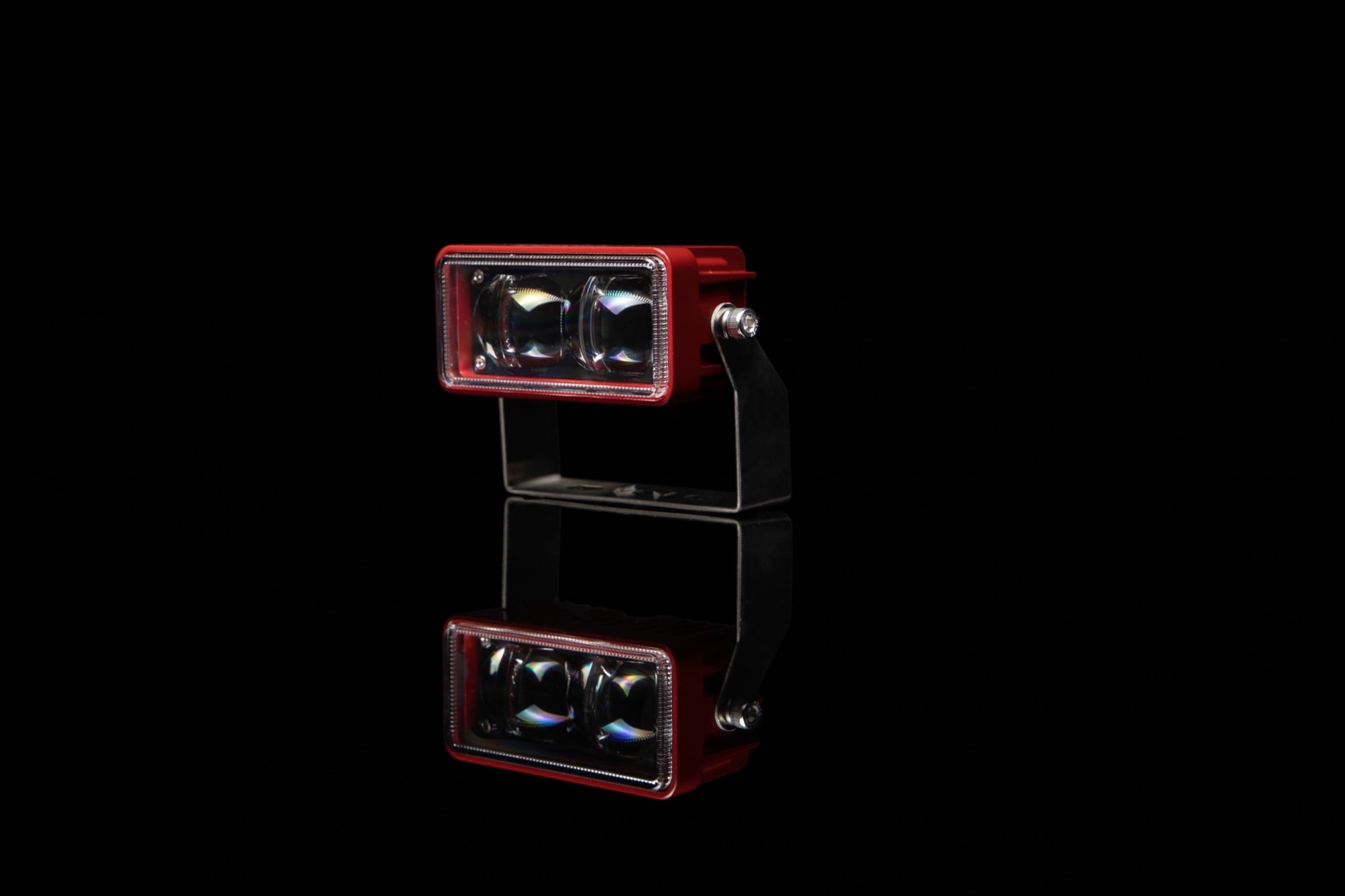

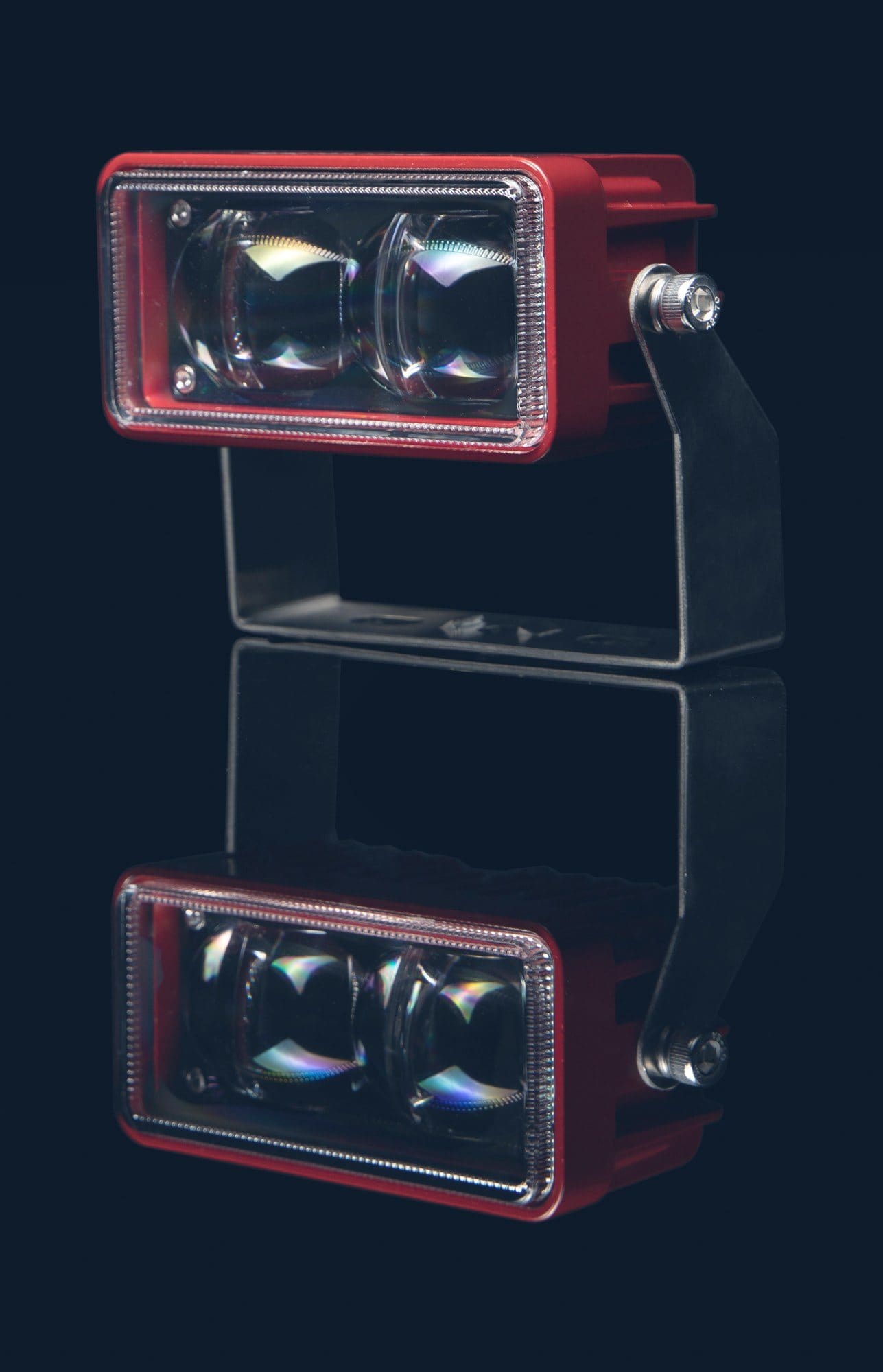

LED Safety Halo™
SHXL-30

LED Safety Halo™

30 W · 1,950 lm

For forklifts, skid steers, small excavators, rollers and compactors.

Specifications

Class 2 laser, Class 3R and LED

The Laser Safety Halo™ weighs 0.38 kg, draws under 250 mA at 12 VDC and runs from −10 to +40 °C; the SHXL-30 LED delivers 1,950 lm from 30 W and runs from −40 to +65 °C. All are IP68.

SpecificationClass 2 laserClass 3R laserLED SHXL-30
Projection range< 10 m< 50 mNot published
Height : line ratio1 : 11 : 0.2 (2 m line at 10 m)—
Power< 30 mW< 100 mW30 W · 6 × 5 W Cree LEDs
Input voltage12–48 VDC12–48 VDC10–110 VDC
Draw at 12 VDC< 250 mA< 250 mA2.50 A
Operating temperature−10 a +40 °C−10 a +40 °C−40 a +65 °C
Size with bracket92 × 62 × 41 mm92 × 62 × 41 mm134 × 111 × 78 mm
Weight0.380 kg0.380 kgNot published
ProtectionIP68IP68IP68
CertificationsCE · EMC · FCC · EN/IEC 60825-1CE · EMC · FCC · EN/IEC 60825-1ECE R10 · CE · EMC 2014/30/EU

Colours on all three models: red 638 nm, green 520 nm and blue 450 nm. Laser: 6063 aluminium housing, 304 stainless bracket, 2-year manufacturer warranty. Avoid direct eye exposure to the beam.

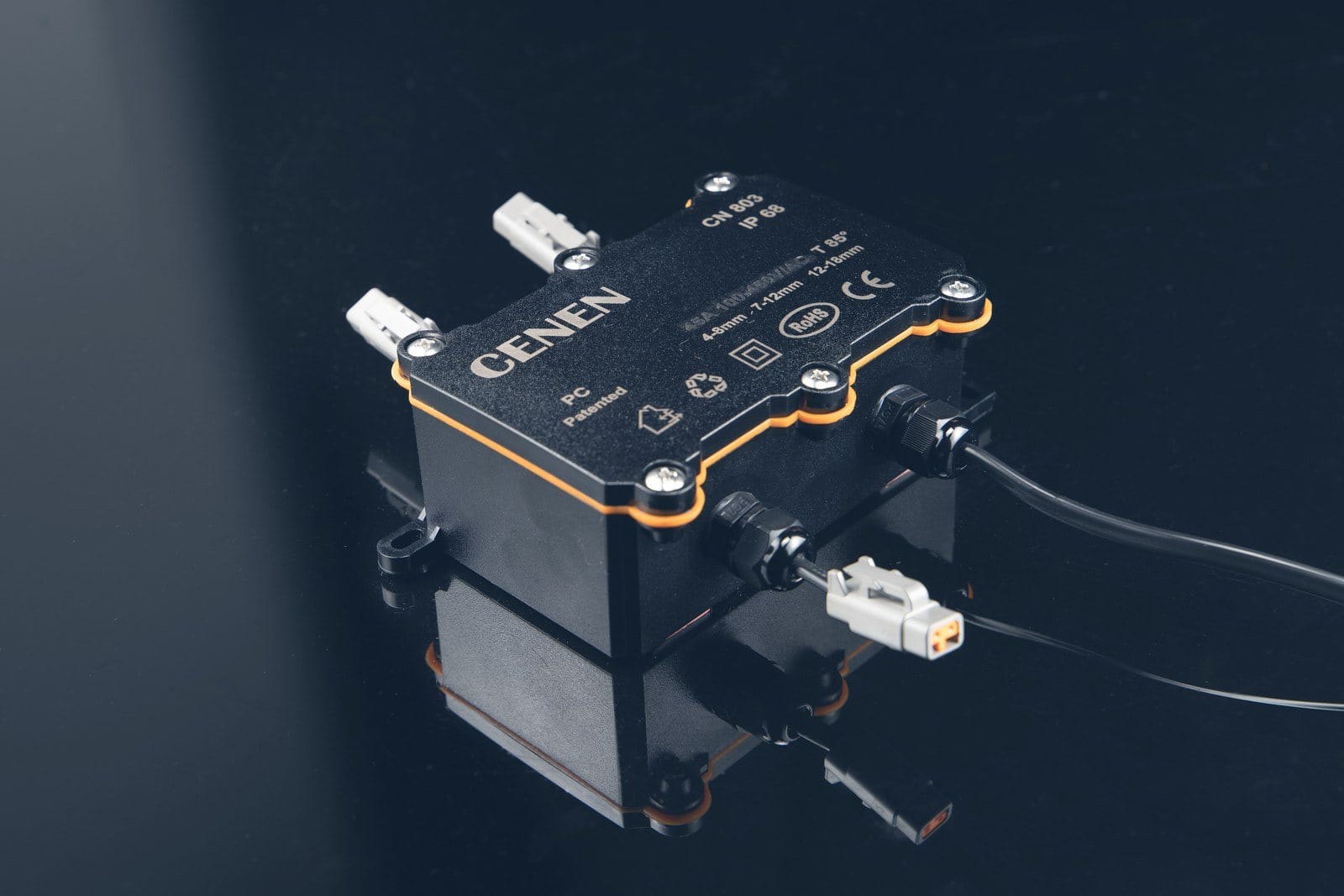

Safety Halo™ kit IP68 junction box

Kits and installation

Plug-and-play kits of 2 to 7 lights

Safety Halo™ ships in plug-and-play kits of 2 to 7 lights, laser or LED. Each kit includes the lights with Deutsch DT2 connectors, the junction box with surge protection and 304 stainless brackets with 3M VHB structural adhesive. The laser can connect to the machine's existing lighting circuits.

  • IP68 junction boxSurge protection and 40 A rectifier.
  • 304 stainless bracketHorizontal or vertical mounting with 3M VHB adhesive.
  • Eight install stepsClean, stick the bracket, fix light and box, connect and switch on.

Part numbers

Single light or full kit

Each Safety Halo™ model comes as a single light or a kit. The number of lights depends on the machine size and the perimeter you want to mark, and the x in the code is the colour: R red, G green, B blue.

ModelSingleKit 2Kit 3Kit 4Kit 5Kit 6Kit 7
LED SHXL-30SHxL-30SHxL-20PPKSHxL-30PPKSHxL-40PPKSHxL-50PPKSHxL-60PPKSHxL-70PPK
Class 2 laserLSHx-A2LSHx-2PPKLSHx-3PPKLSHx-4PPKLSHx-5PPKLSHx-6PPKLSHx-7PPK
Class 3R laserLSHx-B1LSHx-B12PPKLSHx-B13PPKLSHx-B14PPKLSHx-B15PPK——

Example: SHRL-30 is the single red LED light; LSHG-B13PPK is the kit of 3 green Class 3R lasers.

On site

Running in mines in Australia and Chile

Safety Halo™ runs in mines in Australia and Chile, underground included: green lines to align trucks at ROM hoppers, red zones on night shifts and boundaries between machines and crews. To identify each machine, pair it with NevaFail™; more practices in mining vehicle signage.

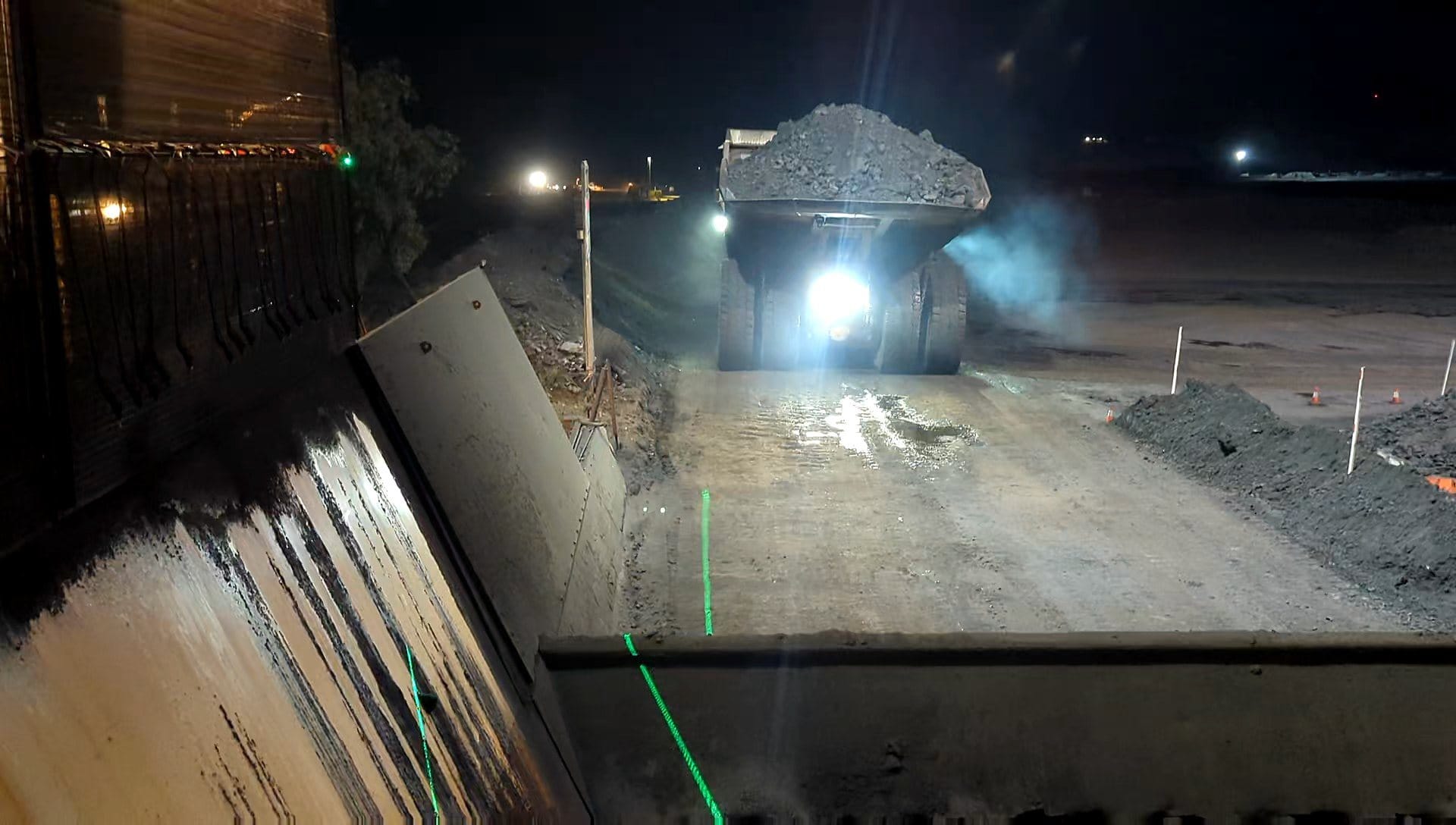

Green alignment line for a truck at a ROM hopper

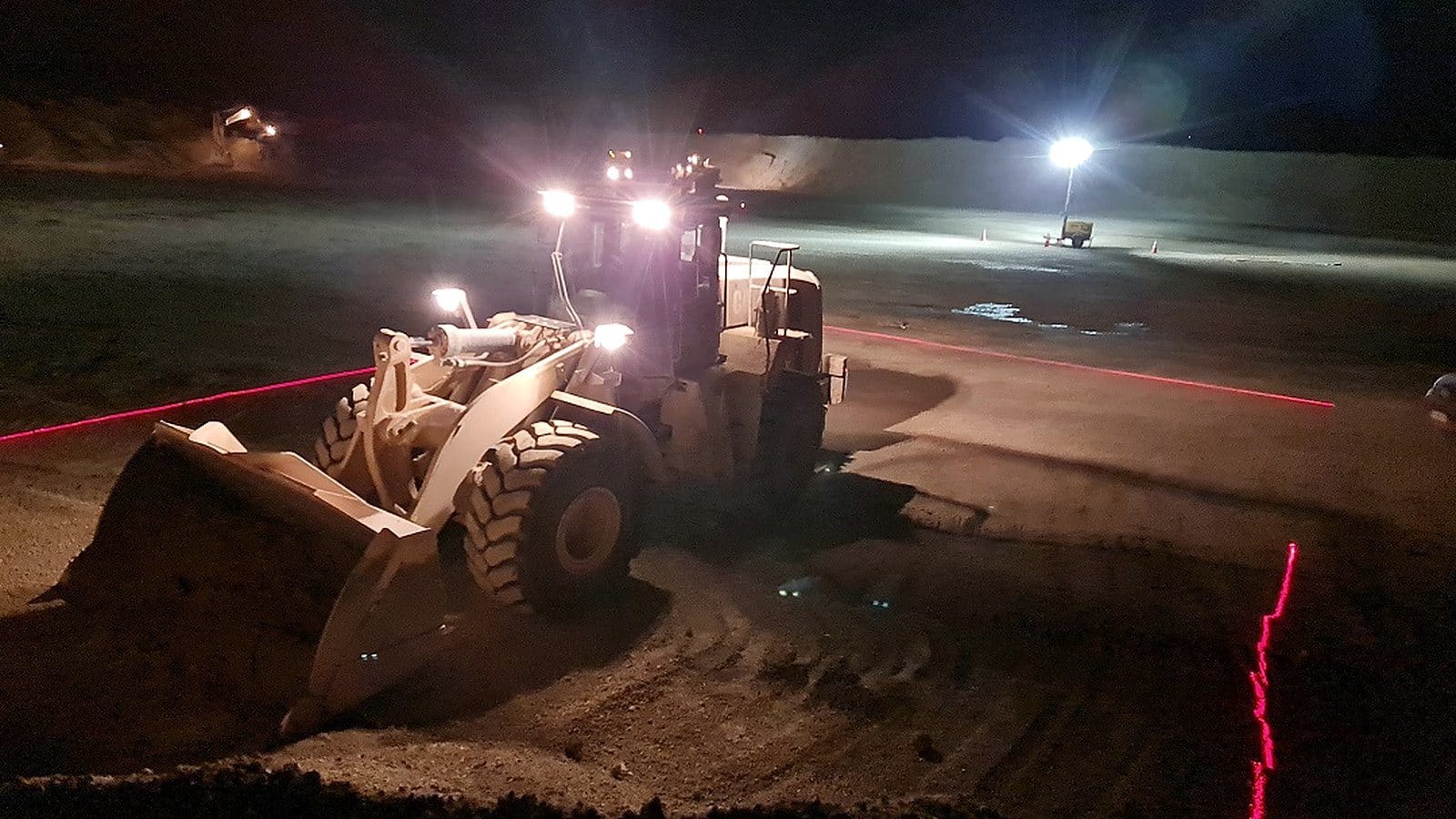

Loader with a red laser line at night

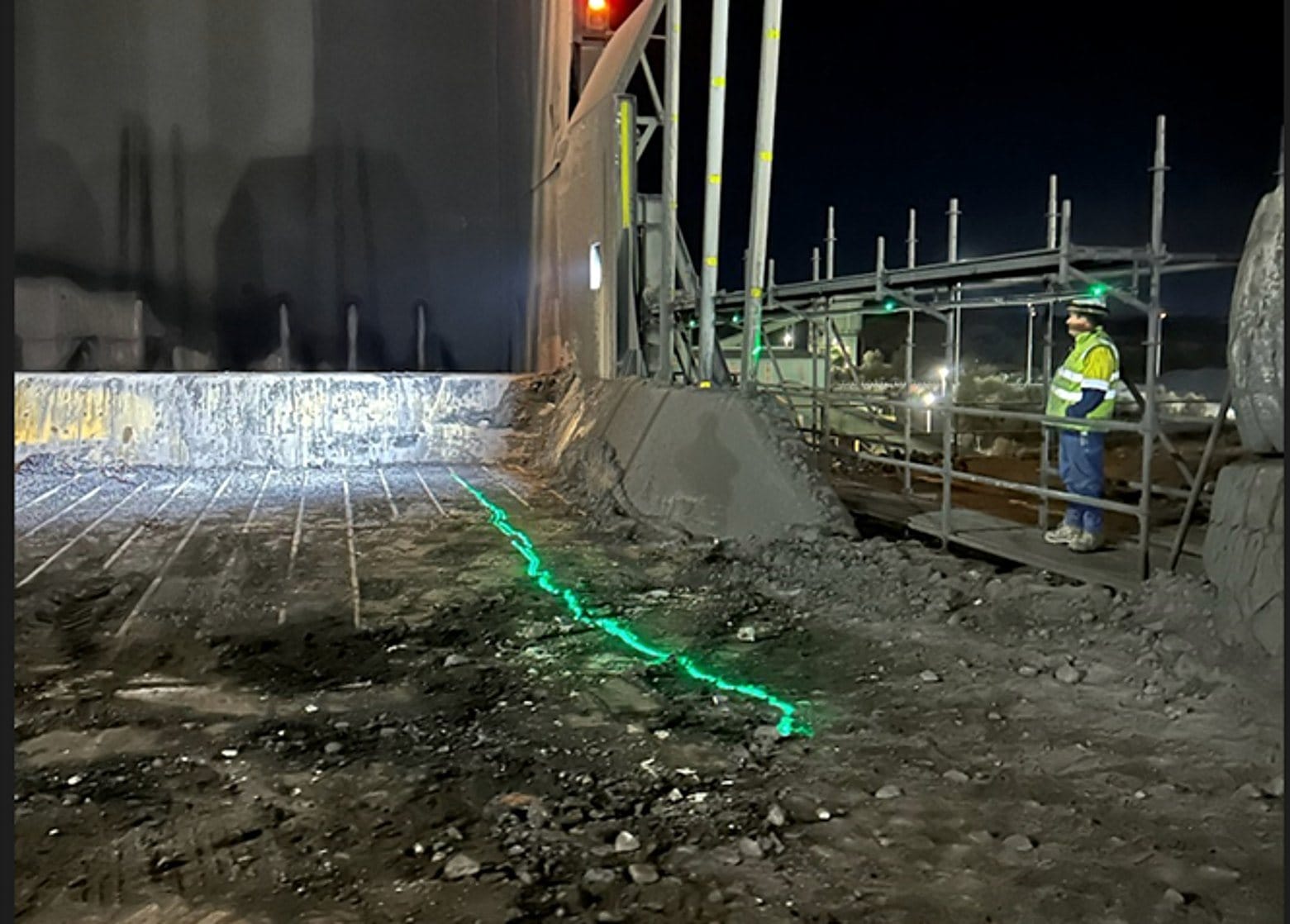

Green boundary between machine and crew underground

FAQ

Safety Halo™ FAQ

What is Safety Halo™?
Safety Halo™ is a laser or LED lighting system, developed by Incident Zero in Australia, that mounts on machinery and projects an exclusion zone on the ground that moves with the machine. It sets exactly how far operators and pedestrians must stay back, is understood regardless of language and needs little training.
What is the difference between laser and LED Safety Halo™?
The Laser Safety Halo™ projects a sharp line at distance: Class 2 up to 10 m (mounted at 3 m, a 3 m line) and Class 3R up to 50 m, for shovels, draglines, dozers, loaders and trucks. The SHXL-30 LED Safety Halo™, 30 W and 1,950 lm, draws an even zone around compact plant such as forklifts and skid steers.
Which Safety Halo™ light colour should I use?
All three Safety Halo™ models come in red (638 nm laser), green (520 nm) and blue (450 nm). As a guide, red marks a danger zone, blue a presence warning and green a boundary or guide, for example to align trucks at a ROM hopper. The laser line is visible even to people with red-green colour blindness.
How many Safety Halo™ lights does my machine need?
Safety Halo™ kits range from 2 to 7 lights depending on machine size and the perimeter to mark; the Class 3R laser comes in kits of 2 to 5. We help you define quantity, colour and placement of the lights for a forklift, loader, excavator, dozer, grader, crane or dragline.
Is the Safety Halo™ laser safe for the eyes?
The Laser Safety Halo™ is a Class 2 or Class 3R laser product depending on the model, certified to the EN/IEC 60825-1:2014 and AS/NZS IEC 60825.1 laser safety standards. The light is projected onto the ground to mark the zone; as with any laser, avoid direct eye exposure to the beam.
Does Safety Halo™ withstand mine conditions?
Yes. Every Safety Halo™ model is IP68 against dust and water. The laser has a 6063 aluminium housing, a 304 stainless bracket and a 2-year manufacturer warranty; the SHXL-30 LED is tested to 7 g vibration, has Class 4 EMC anti-interference and runs from −40 to +65 °C.
How is Safety Halo™ installed and wired?
Safety Halo™ installs in 8 steps with a plug-and-play kit: clean the area, stick the bracket with 3M VHB adhesive, fix the light and junction box, connect the box to the machine's power supply and the lights with their Deutsch DT2 connectors. The laser takes 12 to 48 VDC and the LED 10 to 110 VDC.
Where can I buy Safety Halo™ in Peru?
Endeavant S.A.C., in Miraflores, Lima, distributes Incident Zero's (Australia) Safety Halo™ in Peru and serves mining operations across the country. Tell us your machines and where your crew works, and we will put together the kit with the number of lights, laser or LED model and colour for each machine.

Also for your site

More safety for mobile plant

NevaFail™
LED identification

NevaFail™

LED equipment number with fail-safe reflective backing.

Learn more

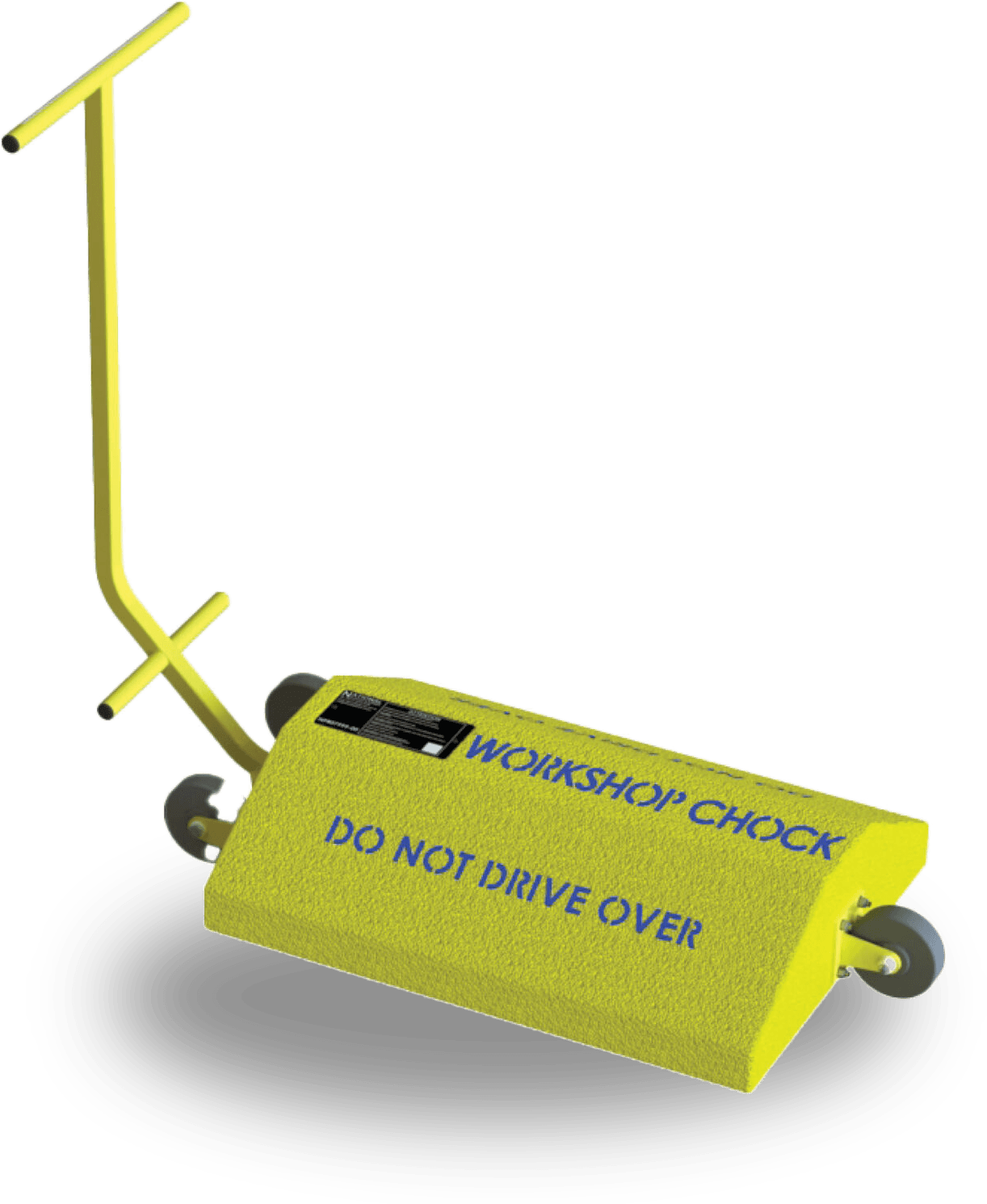

MineChock™
