Avant 3 · Endeavant smart cameras

Avant 3: DMS anti-fatigue camera

The Avant 3 is Endeavant's DMS anti-fatigue camera: it runs artificial intelligence on board, detects fatigue, phone use and distraction, and alerts the driver right away with voice and seat vibration. It takes up to 3 cameras.

Light and heavy transportScales to Avant 5 or 8
Get the data sheetWhatsApp
Cameras
3max
On-board memory
256GB
Video
1080p
Vibrator
12/24V

The unit · up to 3 cameras

Entry-level anti-fatigue system

The Avant 3 is for fleets that need to cover driver behavior without a dedicated recorder, in light and heavy transport. It is the simplest to install, with a path up to the Avant 5 or the Avant 8.

  • Endeavant DMS camera with built-in AIOn the dashboard, facing the driver. Processes on board.
  • Internal speaker and seat vibratorVoice and vibration with every alert.
  • Optional ADAS and cab cameraUp to 3 cameras in total.
  • Micro SD up to 256 GBFull HD 1080p recording on board.

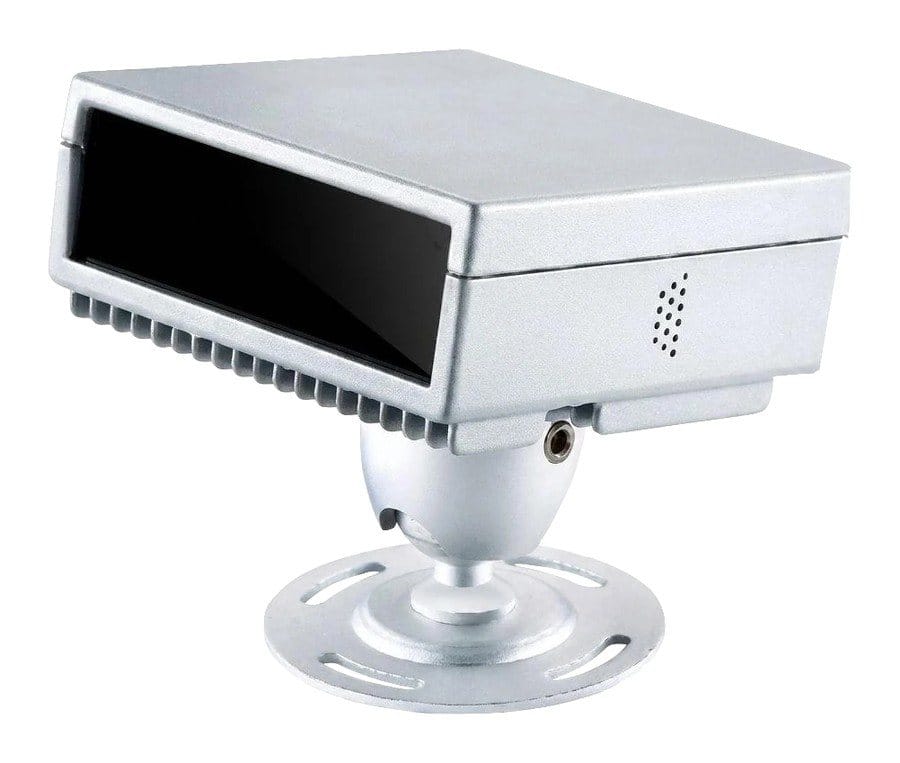

Avant 3 unit with DMS camera and bolted base

DMS · the driver

What it detects in the driver

The Avant 3 DMS tracks the driver's face frame by frame and sees at night by infrared, with a photobiological certificate, so the light does not harm the eyes. Here is how AI fatigue detection works.

Fatigue and drowsiness

Microsleep, closed eyes, nodding and yawning.

Phone use

Phone in hand or at the ear while driving.

Visual distraction

Gaze off the road and sustained head turn.

Smoking

Lit cigarette while driving.

Covered lens

Lens obstruction is reported as an event.

Full HD recording

1080p video of every event.

ADAS · the road

What it detects on the road

With the optional ADAS camera on the windshield, the Avant 3 also watches the road.

Forward collision (FCW)

Optional, with ADAS camera.

Lane departure (LDW)

Optional, with ADAS camera.

Harsh braking and turns

Via accelerometer.

Components

Avant 3 components

Each Avant 3 camera covers a different point of the vehicle and the main unit syncs them: when an alert comes in, the evidence brings what each one saw in those seconds.

Endeavant DMS camera (anti-fatigue)

Endeavant DMS camera (anti-fatigue)

Main unit · built-in AI

Seat vibration motor
A358-VIB24V

Seat vibration motor

12 V or 24 V · vibrates with the alert

ADAS anti-collision camera
A358-ADAS03

ADAS anti-collision camera

Optional · faces the road

In-cab IPC camera
A358-IPC06

In-cab IPC camera

Optional · cab view

How it works

From the event in the cab to the report

Avant units process on board, so the in-cab alert does not depend on signal. Every event uploads to Endeavant Cloud with its video and Endeavant's 24/7 Control Center validates it.

  1. The camera detectsFatigue, distraction or a risky maneuver, frame by frame.
  2. In-cab alertVoice and seat vibration: the driver corrects right away.
  3. 24/7 validationThe video reaches Endeavant Cloud and the Control Center validates it.
  4. ReportRoutes, shifts and drivers with the most risk, built for your operation.
Alert pop-up in Endeavant Cloud with the event video and locationSimulated data

Endeavant Cloud

The alert opens with its evidence

In Endeavant Cloud every alert opens with photo or video, plate, speed, time and place. Classify it, request the full video or notify the supervisor without leaving the screen.

  • Video 15 s before and afterOne MP4 per camera, kept 12 months on the platform.
  • Works with and without signalWithout coverage, video stays on the unit and uploads when signal returns.

FAQ

Avant 3 FAQ

Does the Avant 3 need a separate recorder?
No. On the Avant 3 the DMS camera itself runs the artificial intelligence and records Full HD 1080p video to its micro SD of up to 256 GB, with an internal speaker and seat vibrator. That is why it is the simplest unit to install in the Avant line: there is no separate recorder to mount or wire.
Can I add the ADAS camera later?
Yes. On the Avant 3 the ADAS anti-collision camera and the cab camera are optional and can be added up to 3 cameras. With ADAS on the windshield, the unit adds forward collision and lane departure warnings. If you later need blind spots, side or reverse cameras, the next step is the Avant 5.
How does the driver learn about the alert?
The Avant 3 warns the driver with a voice message from the internal speaker and the 12 V or 24 V vibration motor under the seat, at the moment of the event. Thresholds, sensitivity and voice prompts are set per fleet. The event uploads with its video to Endeavant Cloud, where the 24/7 Control Center validates it.
How long does installation take?
Installing the Avant 3 takes two to three hours per vehicle, with Endeavant technicians across northern, central and southern Peru. The unit sits on the dashboard facing the driver, in a bolted metal housing, and thresholds, sensitivity and voice prompts are set up the same day.
Does the Avant 3 work without signal and at night?
Yes to both. The Avant 3 processes on board, so the in-cab alert is the same with or without coverage; without signal, the video stays on the micro SD with time and position and uploads to Endeavant Cloud when signal returns. At night the DMS sees by infrared with a photobiological certificate, without harming the driver's eyes.

Avant line

The other Avant units

Avant 5
Cameras

Avant 5

5-channel recorder with DMS PRO, ADAS and blind spots.

Learn more
Avant 8
Cameras

Avant 8

8-channel recorder with 360° coverage for mining.

Learn more
Avant 3 · 5 · 8
Comparison

Avant 3 · 5 · 8

What each unit includes, side by side.

Learn more

Data sheet and quote

Get the Avant 3 data sheet

We email you the Endeavant cameras brochure right away. Tell us how many units and what operation you run and we will put together the quote.

WhatsApp +51 953 721 385+51 954 799 378contacto@endeavant.com

We reply the same business day. Every quote is prepared for your operation.
