Stacko™ blocks: certified support for mining workshops
Stacko™ is a polyurethane cribbing system that builds interlocking towers up to 60 tonnes and 150 cm, with an AS1170.0 certified load and a 3:1 safety factor. It replaces timber in mining workshops and on site. Made by NPR in Australia, distributed in Peru by Endeavant.
Why Stacko™
Polyurethane blocks with AS1170 certified load
Timber blocks splinter, crack and deform under repeated load, and nobody knows their real capacity. Stacko™ publishes its rating with the 3:1 safety factor included and tested as a full 150 cm tower, which makes it the certified alternative for mining equipment maintenance.
- Certified load ratingTested to AS1170.0 with a 3:1 safety factor.
- Interlocking layersEach layer locks into the one below: stable towers up to 150 cm.
- Built for the fieldOil, workshop chemicals, salt water, rodents and insects. No cracks, no rot.
- 30% lighter, no splintersOne block weighs 8 kg: safer for your crew to handle.
Comparison
Stacko™ versus timber and recycled plastic
Against timber and recycled plastic, Stacko™ is the only cribbing block with a known, certified safety factor, temperature range and deflection. Recycled plastic may claim a higher capacity, but without a safety factor or a tower test. For simple block-style support there is the solid Timba™ block.
| Attribute | Stacko™ | Recycled plastic | Timber |
|---|---|---|---|
| Safety factor | 3:1 | Unknown | Unknown |
| Tested temperature range | −50 a +40 °C | +25 °C | Unknown |
| Deflection at full load | < 2 % | Up to 20% | Unknown |
| Material | Virgin polyurethane | Unknown mix | Variable |
| Block weight | 8 kg | 12 kg | Variable |
| Storage | Outdoor or indoor (UV) | Indoor only | Indoor only |
| Tested as | Block and 150 cm tower | Single block only | Not tested |
System components
Stacko™ tower components

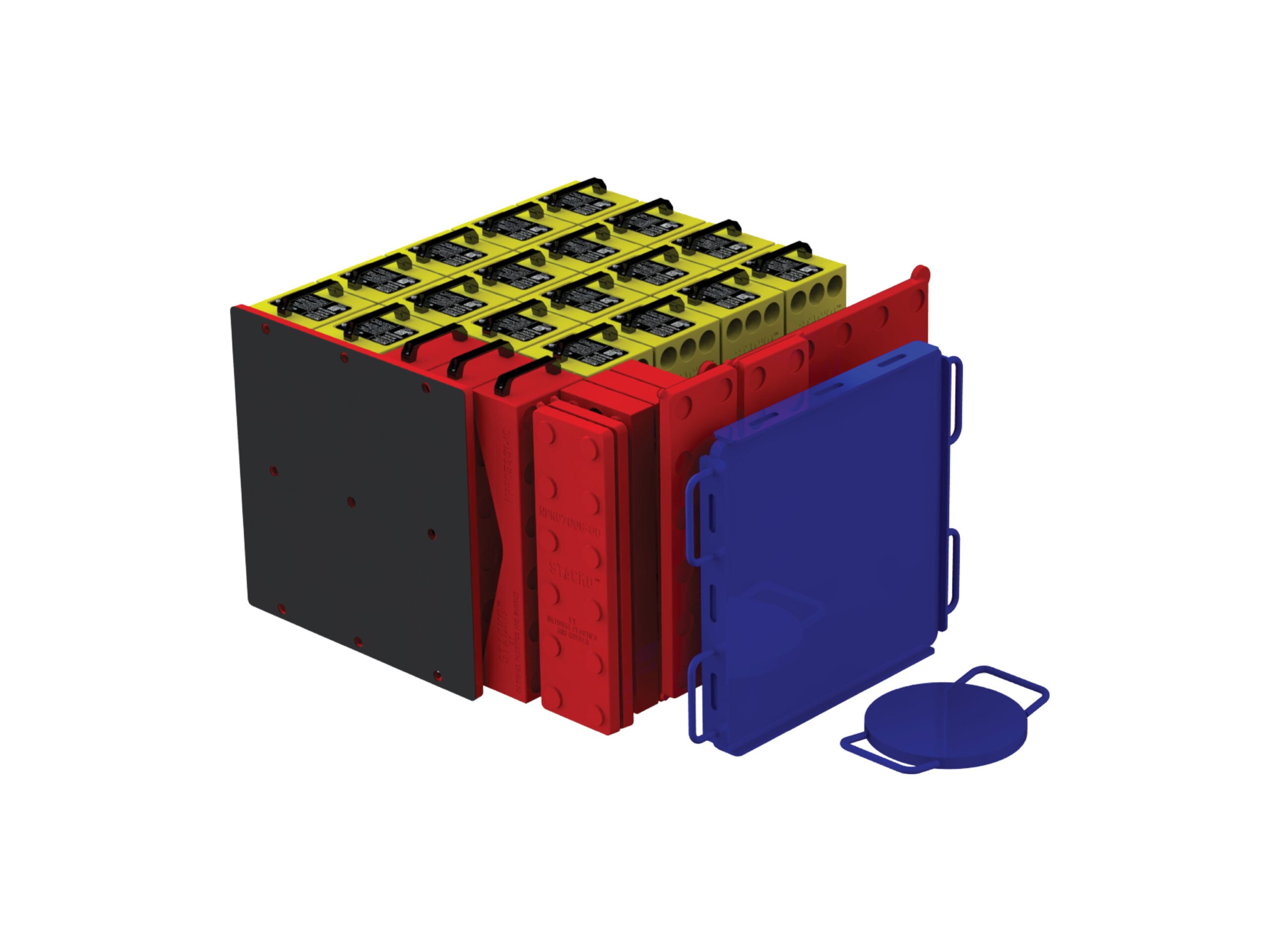

A Stacko™ tower combines block, base, supports, plates and accessories to suit the load. Every part is sold individually or in the Stacko™ start-up kit NPR05458-00, with 18 blocks, base, jack plate, top support and top plate, 3 V-blocks and packers.

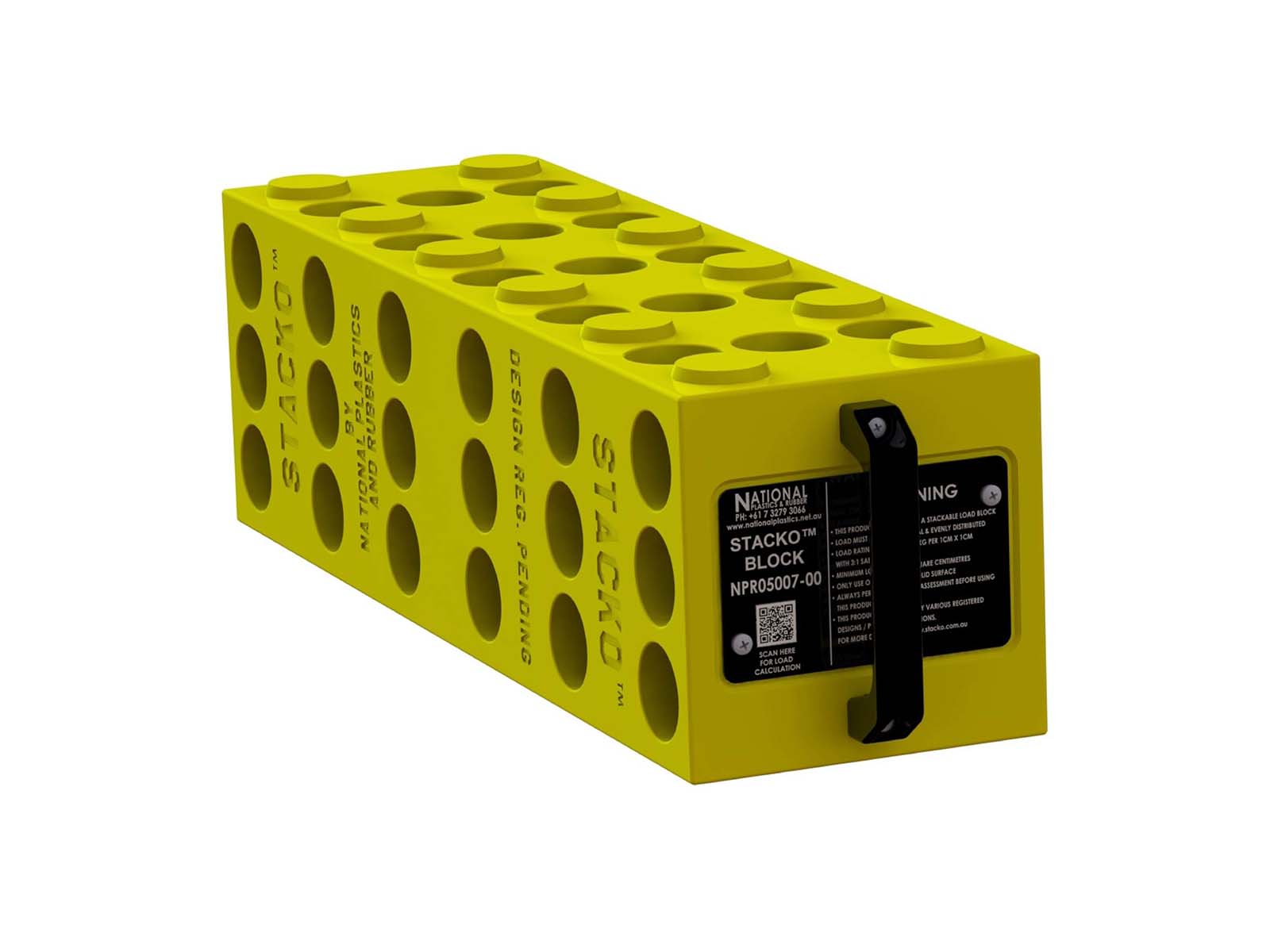

Stacko™ block
510 × 150 × 150 mm · 8 kg

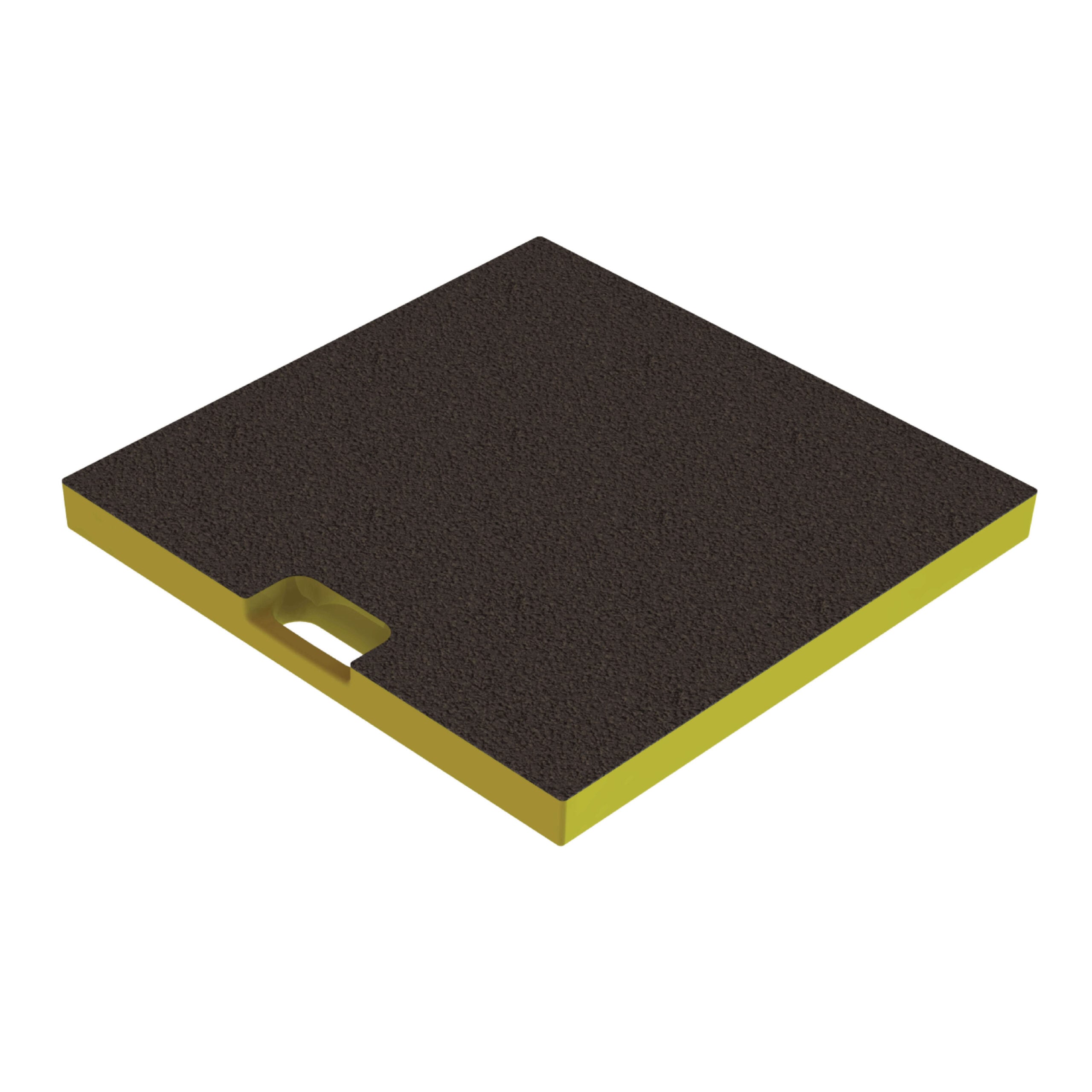

Standard base support
535 × 535 × 20 mm · mandatory
Standard top support
546 × 546 × 22 mm · high grip
Standard top plate
640 × 520 × 50 mm · 42 kg
Jack plate
393 × 250 × 25 mm · jacking base

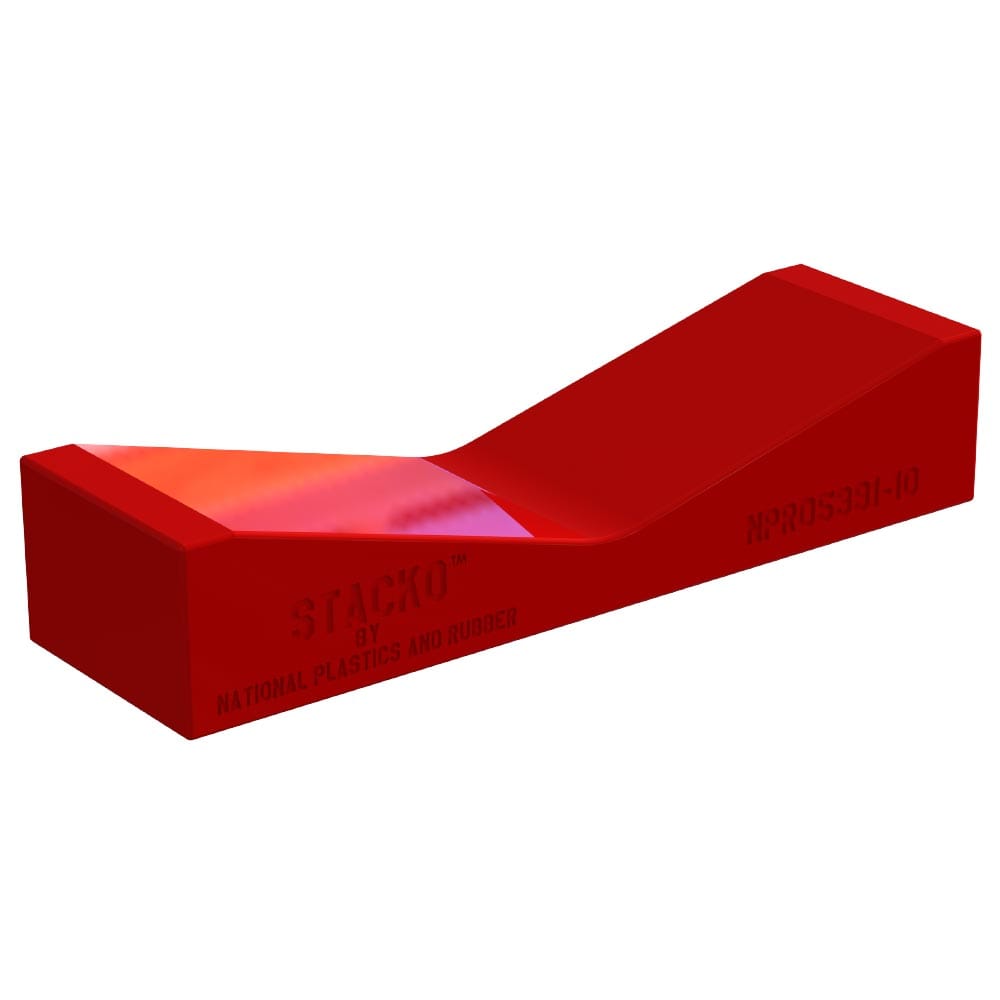

V-block
Cylindrical loads Ø15–120 cm

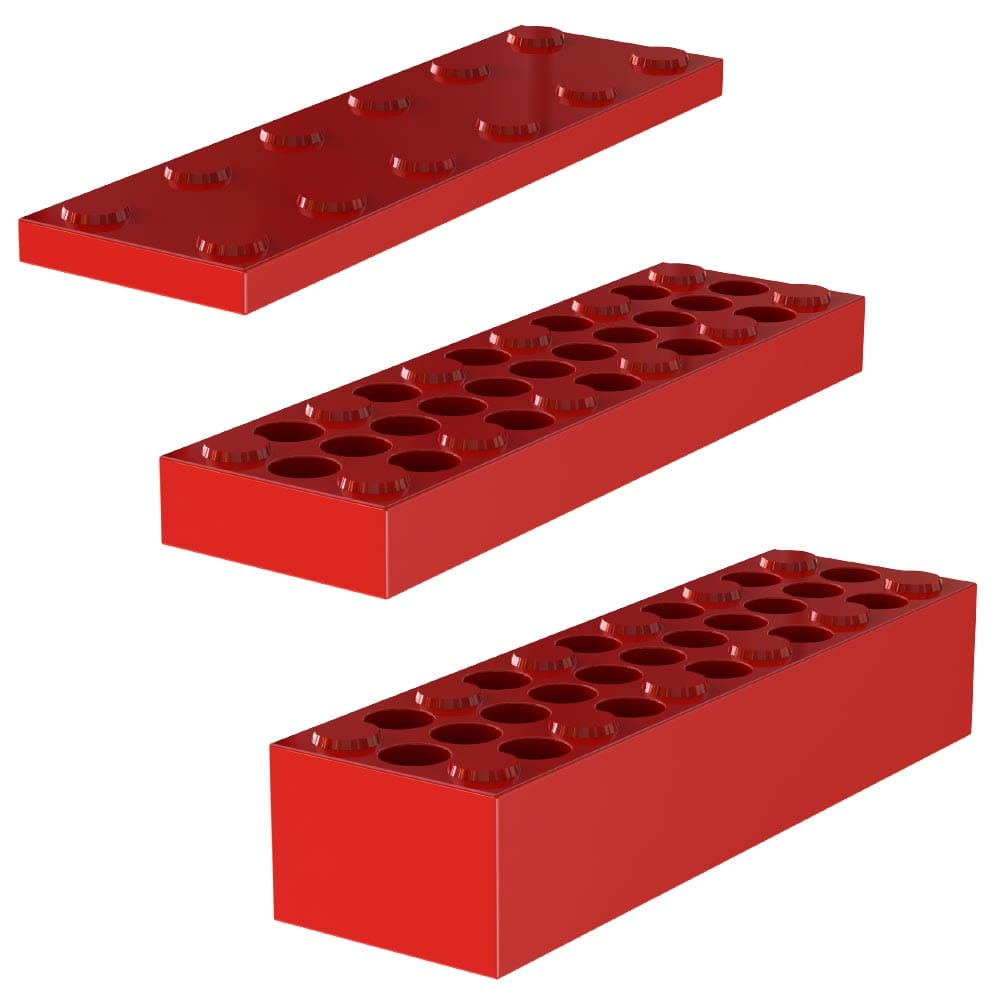

Packers
2.5 / 5 / 10 cm for exact height

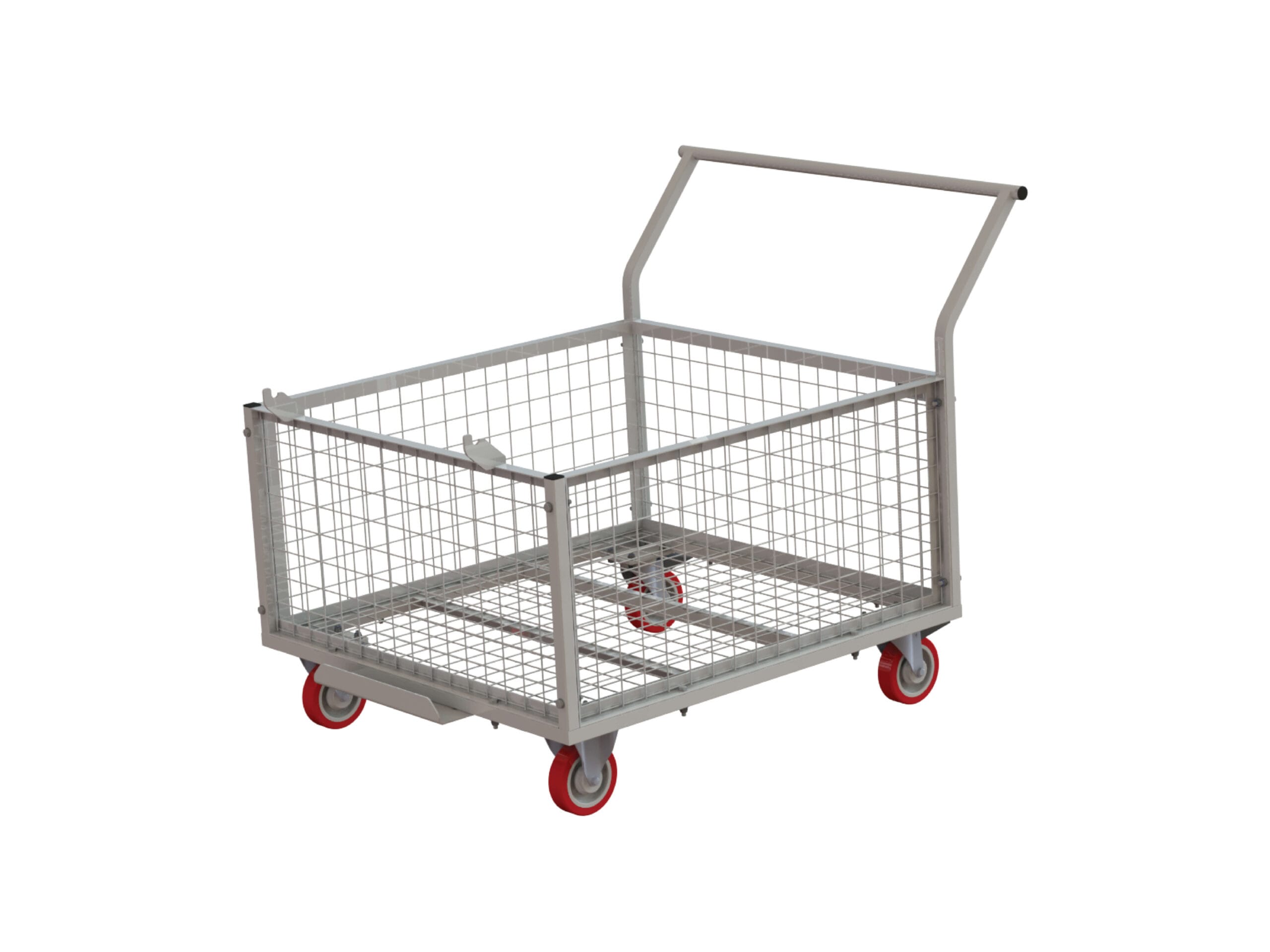

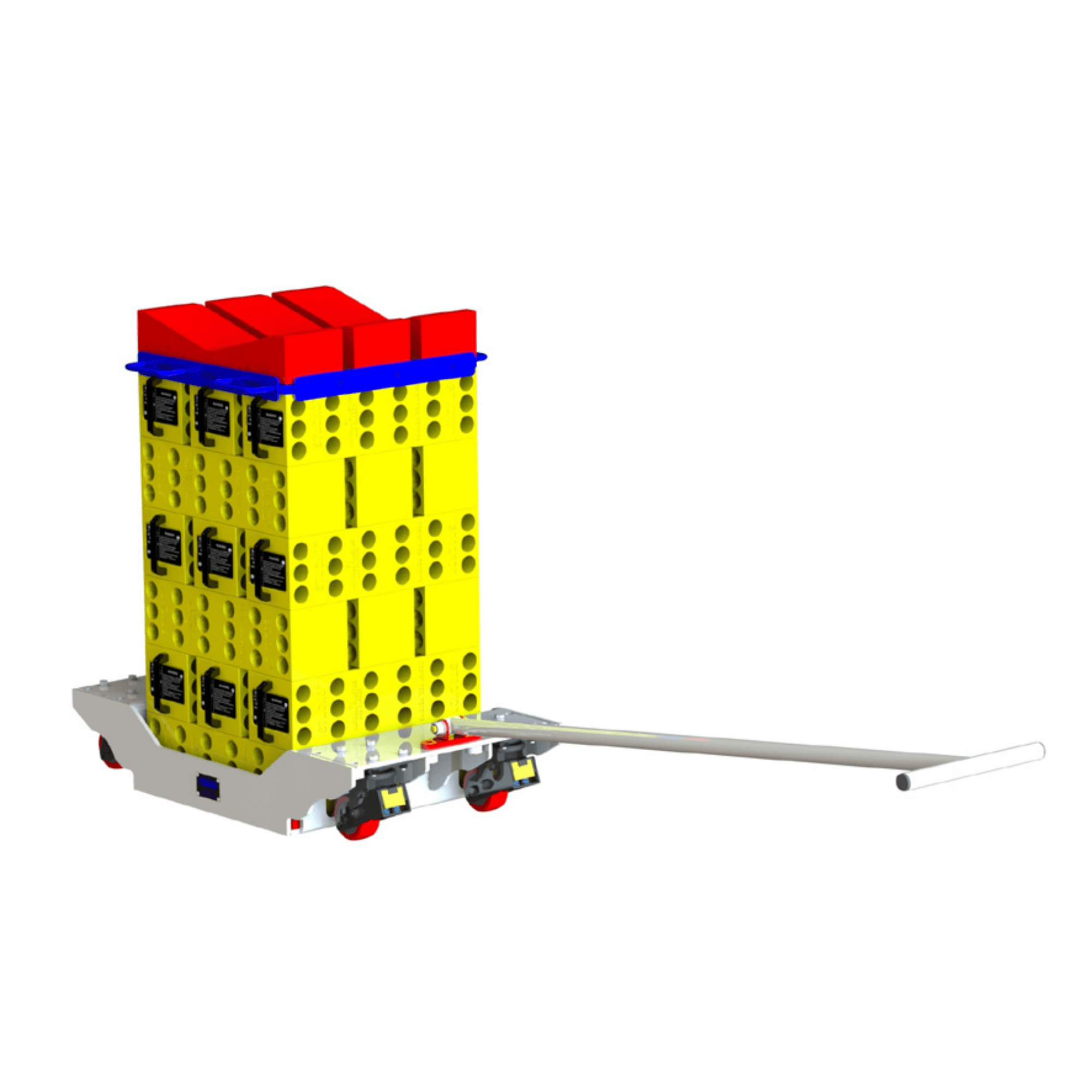

Safe build trolley
Build the tower away from the load

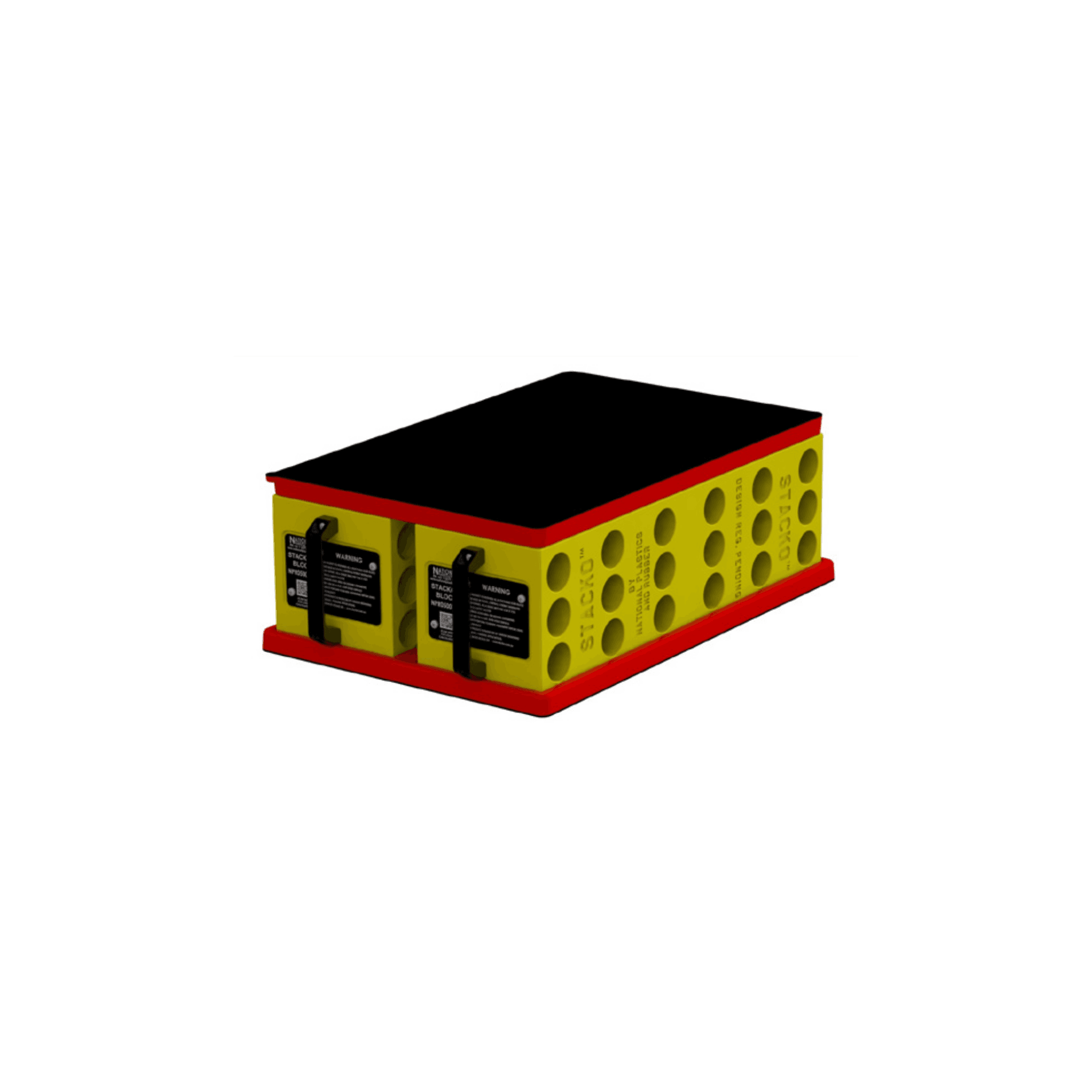

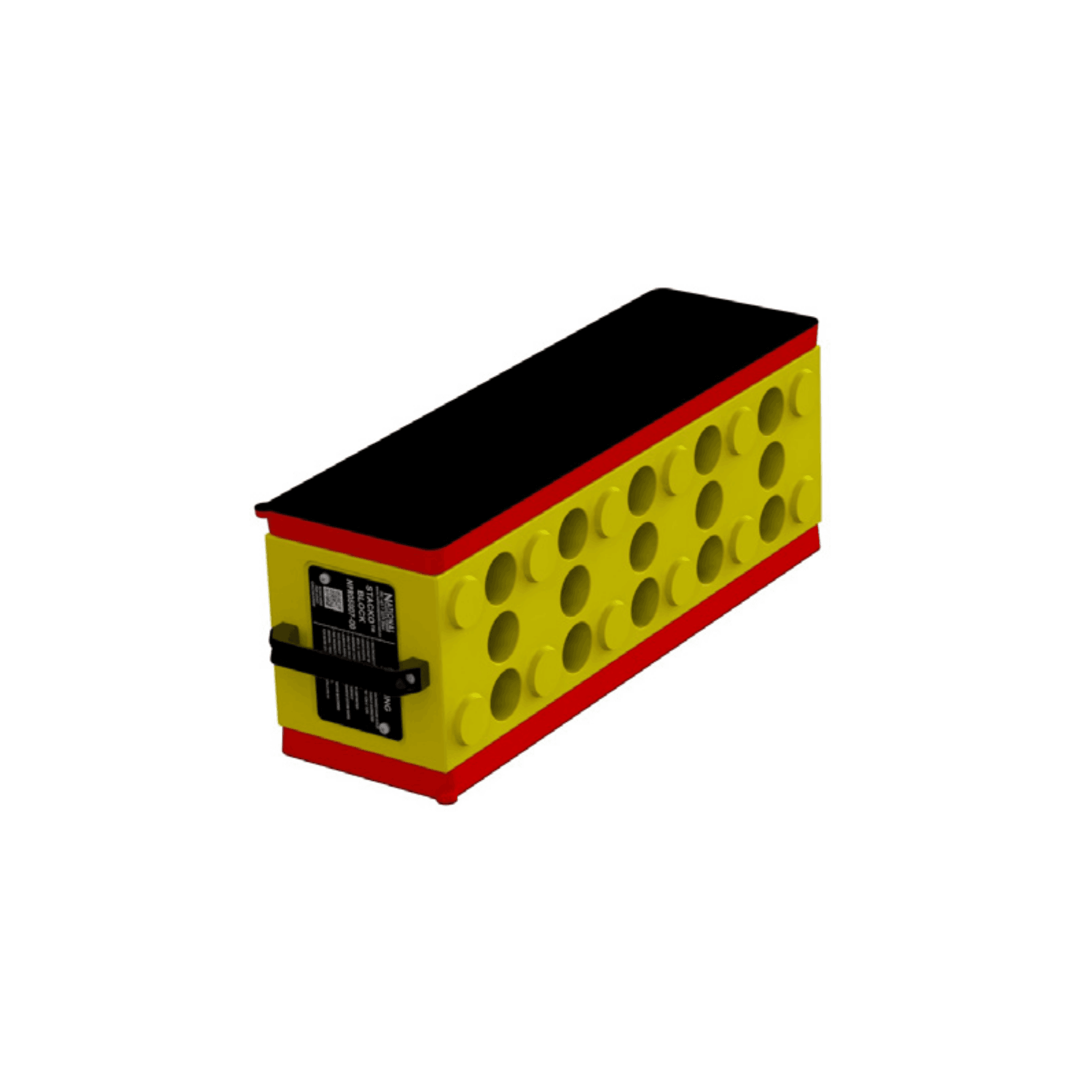

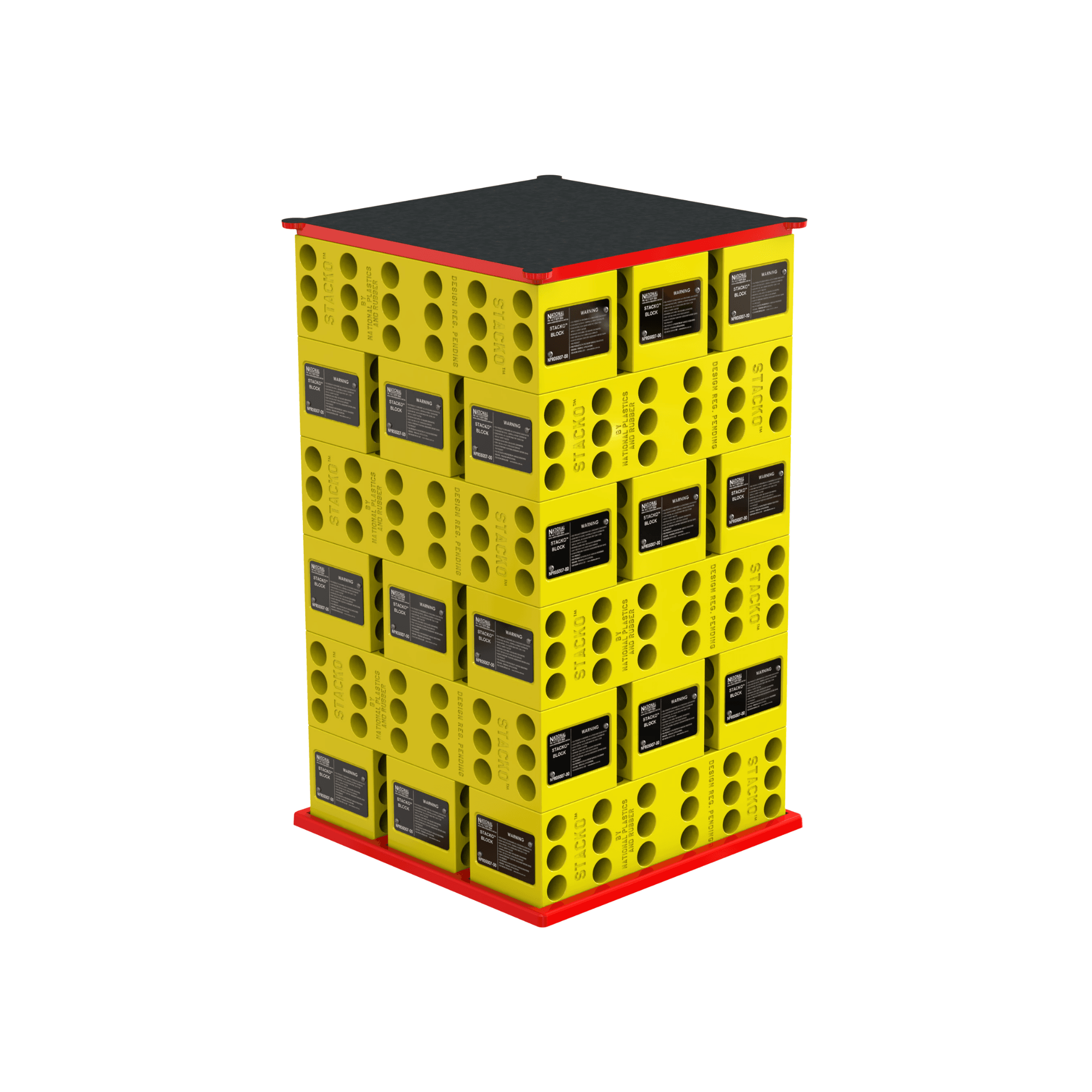

Single, double or triple tower
Three tower widths, by space and load
The width of a Stacko™ tower is set by how many blocks go in each layer, and each width has its own base, plate and top support. The standard tower always takes 3 blocks per layer and carries the most: 60 t up to 150 cm.
Configurations
Eight configurations by load type
Stacko™ blocks combine with plates, jack plate and V-blocks into eight standard configurations, from 13 t (single V-block) to 60 t (tower with top plate). Capacity is bearing area in cm² × 30 kg, always with at least 3 blocks per layer.
| Configuration | Capacity | Max load |
|---|---|---|
| 1 · Single block | 30 kg/cm² | 23 t |
| 2 · Tower + top plate | 100 kg/cm² | 60 t |
| 3 · Tower + top plate + jack plate | Ø250 mm | 60 t |
| 4 · Tower + top support | 30 kg/cm² | 60 t |
| 5 · Tower + plate + top support | 100 kg/cm² | 60 t |
| 6 · Tower + plate + V-block | Ø15–120 cm | 40 t |
| 7 · Tower + V-block | Ø15–120 cm | 20 t |
| 8 · Single V-block | Ø15–120 cm | 13 t |
Tested to AS1170.0 (2002), 3:1 safety factor, −50 °C to +40 °C (block temperature). Always carry out your own risk assessment.
Building the tower
How a Stacko™ tower is built
A Stacko™ tower is built in alternating layers of 3 blocks on the base support, up to 150 cm. Before loading, check the configuration and carry out your own risk assessment.
- Inspect the partsLook for damage or parts that need service.
- Base on firm groundSolid, level surface with 3 blocks in the slots.
- Crossed layersEach layer opposite to the one below, up to 150 cm.
- Top it for the loadTop support, plate, jack plate or V-block.

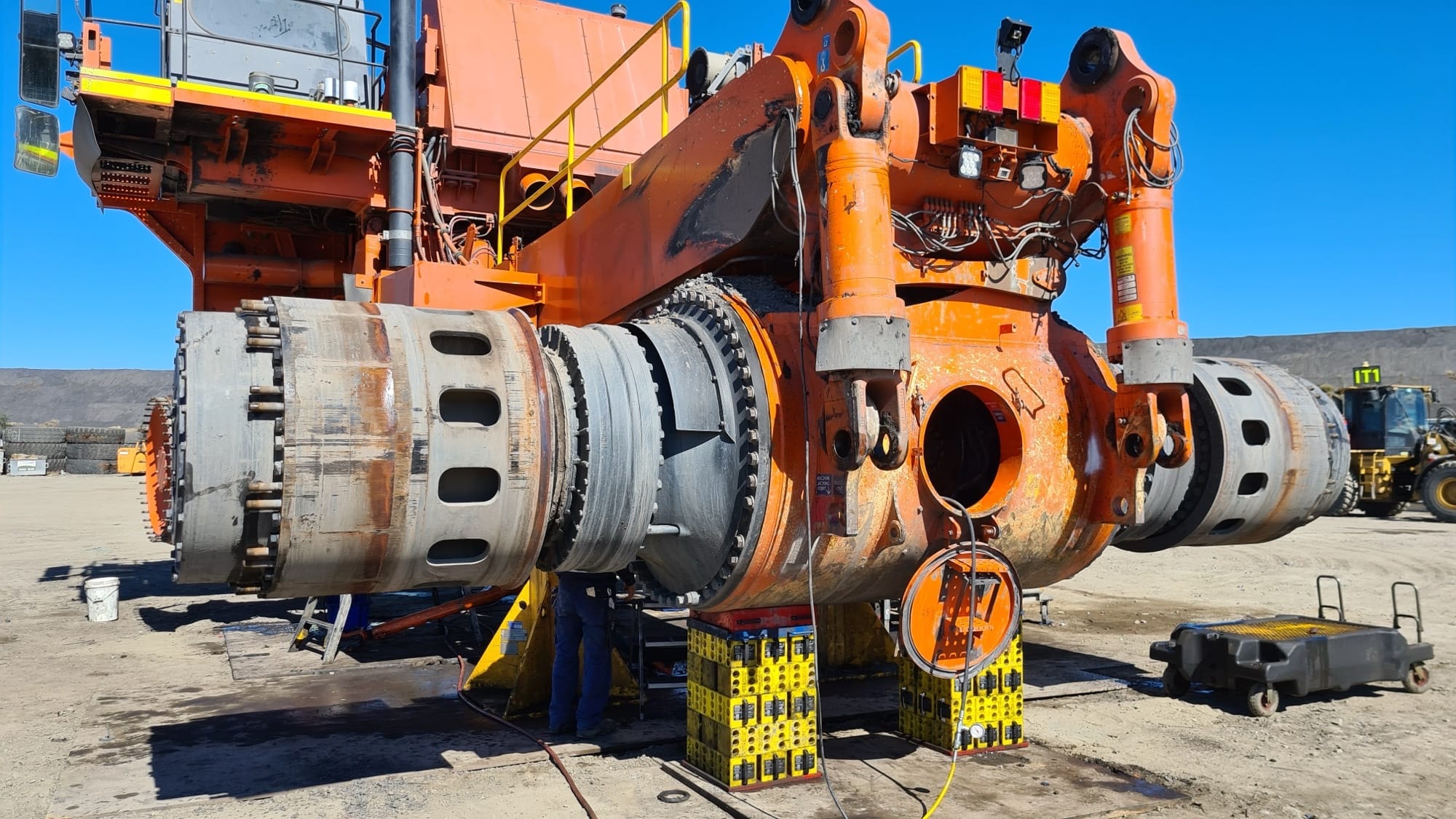

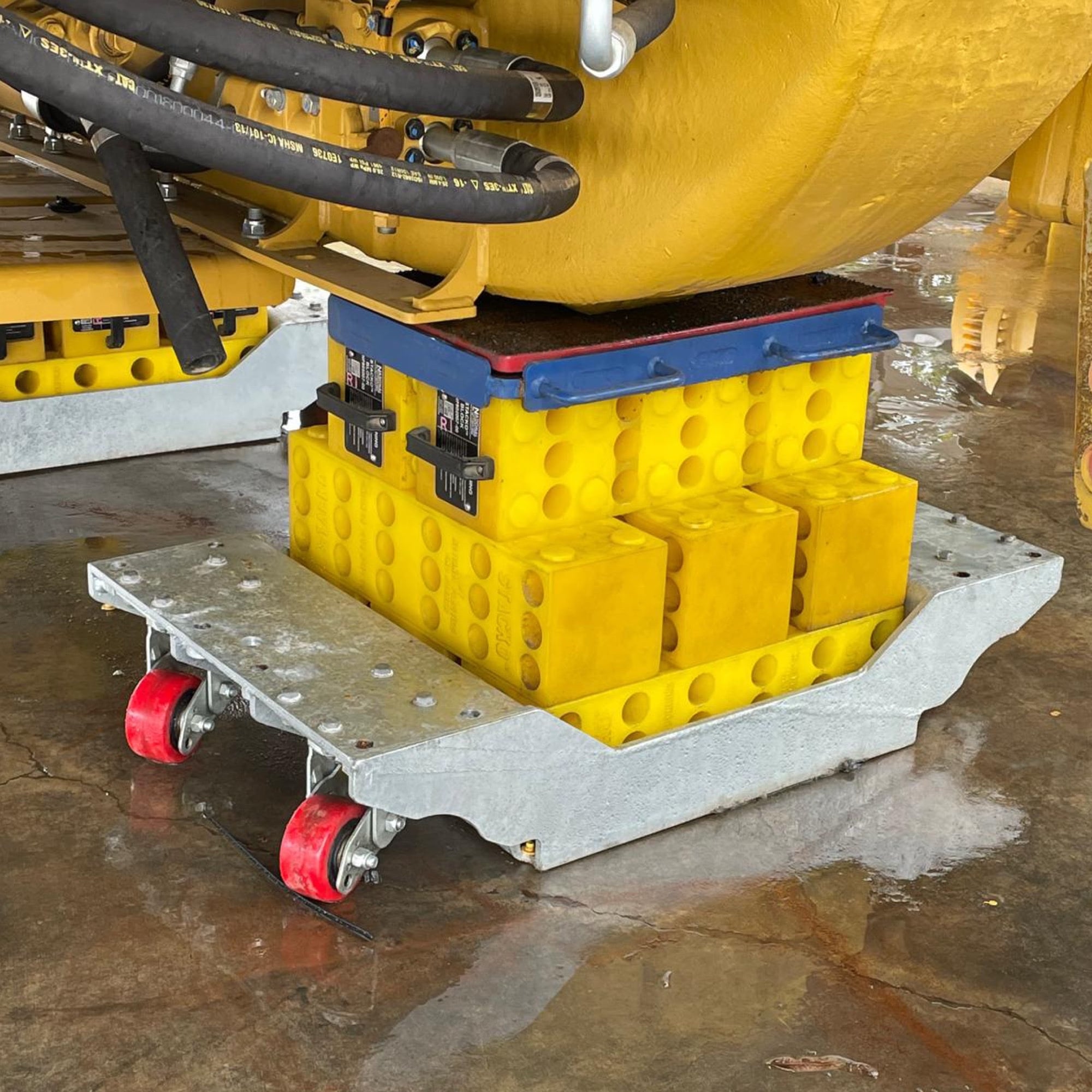

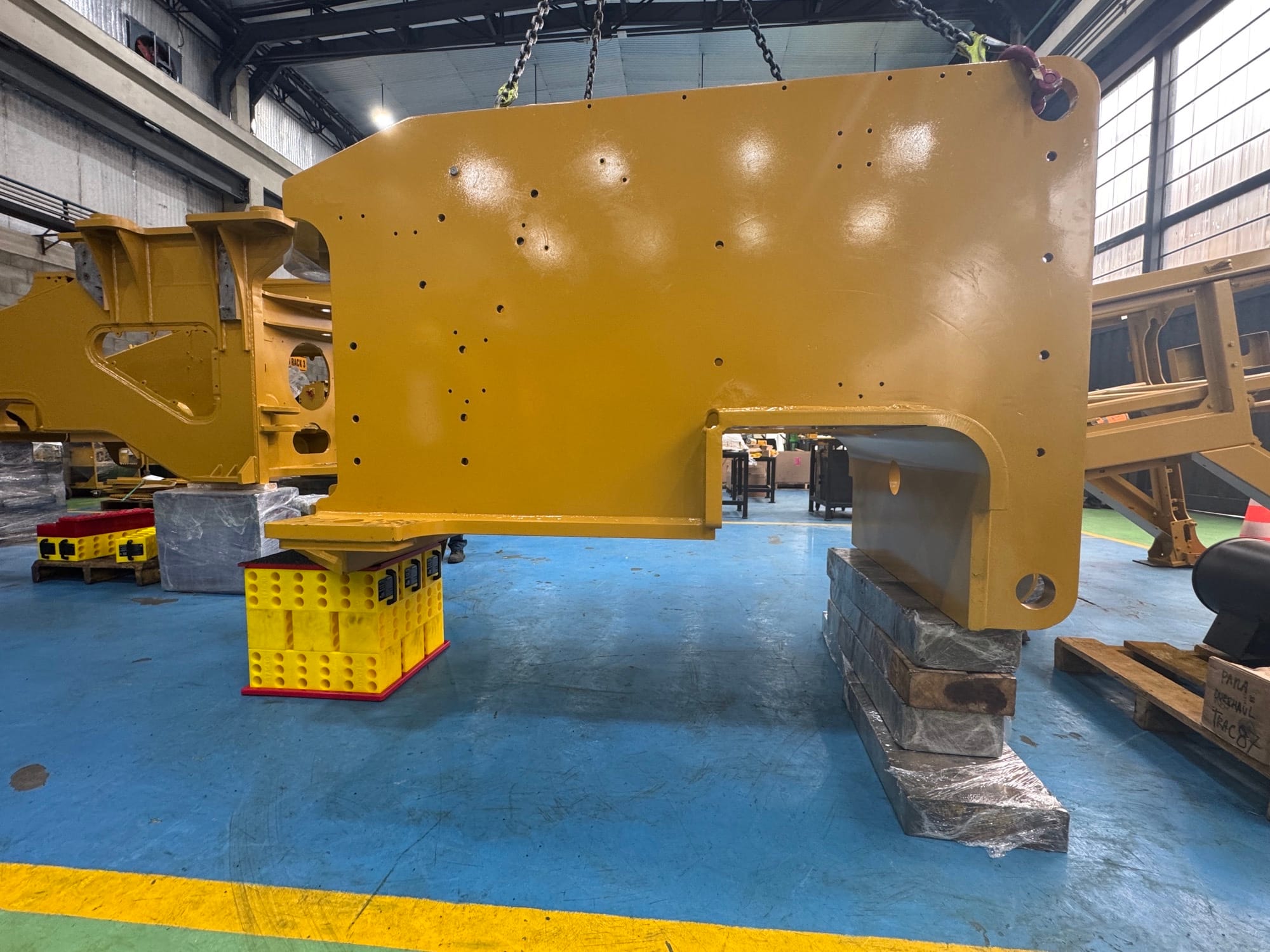

In operation
Stacko™ in workshops and sites
Stacko™ towers under shovel components, engines and haul truck drivetrains, built with the positioning trolley so nobody works under suspended loads. More cases in Stacko™ and Timba™ blocks for mine safety.
Video
Stacko™ cribbing blocks for mining
FAQ
Stacko™ FAQ
Can Stacko™ support haul trucks during maintenance?+
What is a Stacko™ block?+
How much load does a Stacko™ tower hold?+
Which standard certifies the load and how is it calculated?+
Why use Stacko™ instead of timber cribbing?+
What is the difference between Stacko™ and Timba™?+
Can I use 2 blocks per layer in the standard tower?+
What comes in the Stacko™ start-up kit?+
Where can I buy Stacko™ blocks in Peru?+
Also for your workshop
More NPR load support
Tray Support
Tray supports for CAT and Komatsu haul trucks.
Learn more
Timba™
600 to 1800 mm support blocks that replace timber.
Learn more
MineChock™
Polyurethane wheel chocks for mining equipment.
Learn more
Catálogo NPR
The full NPR line with part numbers.
Learn moreData sheet and quote
Get the Stacko™ data sheet
We email you the full brochure right away. Tell us the equipment and support height and we will put together the configuration and quote.
