NPR workshop products: floors, pads, cables and safety
NPR workshop products are polyurethane parts for mining maintenance: FloorDefenda™ mats under tracked machines, 300 kg/cm² ripper and blade pads, cable covers, truck parts and identification. Six families with part numbers, distributed in Peru by Endeavant.
Six families
Engineered polyurethane for the whole mining workshop
National Plastics & Rubber has made polyurethane, industrial plastic and rubber products for mining since 1997. Its workshop line is anti-slip, light and resistant to oils, chemicals, impact and wear, and it does not splinter or rot like timber or old pallets.
Workshop support
V-blocks, dozer lift stand and ripper frame cover, maintenance mats.
Floor protection
FloorDefenda™ mats and trolley, ripper and blade rest pads, outrigger pads.
Cables and hoses
Light, medium and heavy-duty covers, track guide, battery cradle and trolleys.
Truck products
Breather vents, MattCap, fuel cap, FlexiFlap™ and body pads.
Machine identification
Roof number boxes and hanging polyurethane plates.
Safety and accessories
Anti-slip kit, door latch cover, e-stop covers, stud protectors and steps.
FloorDefenda™

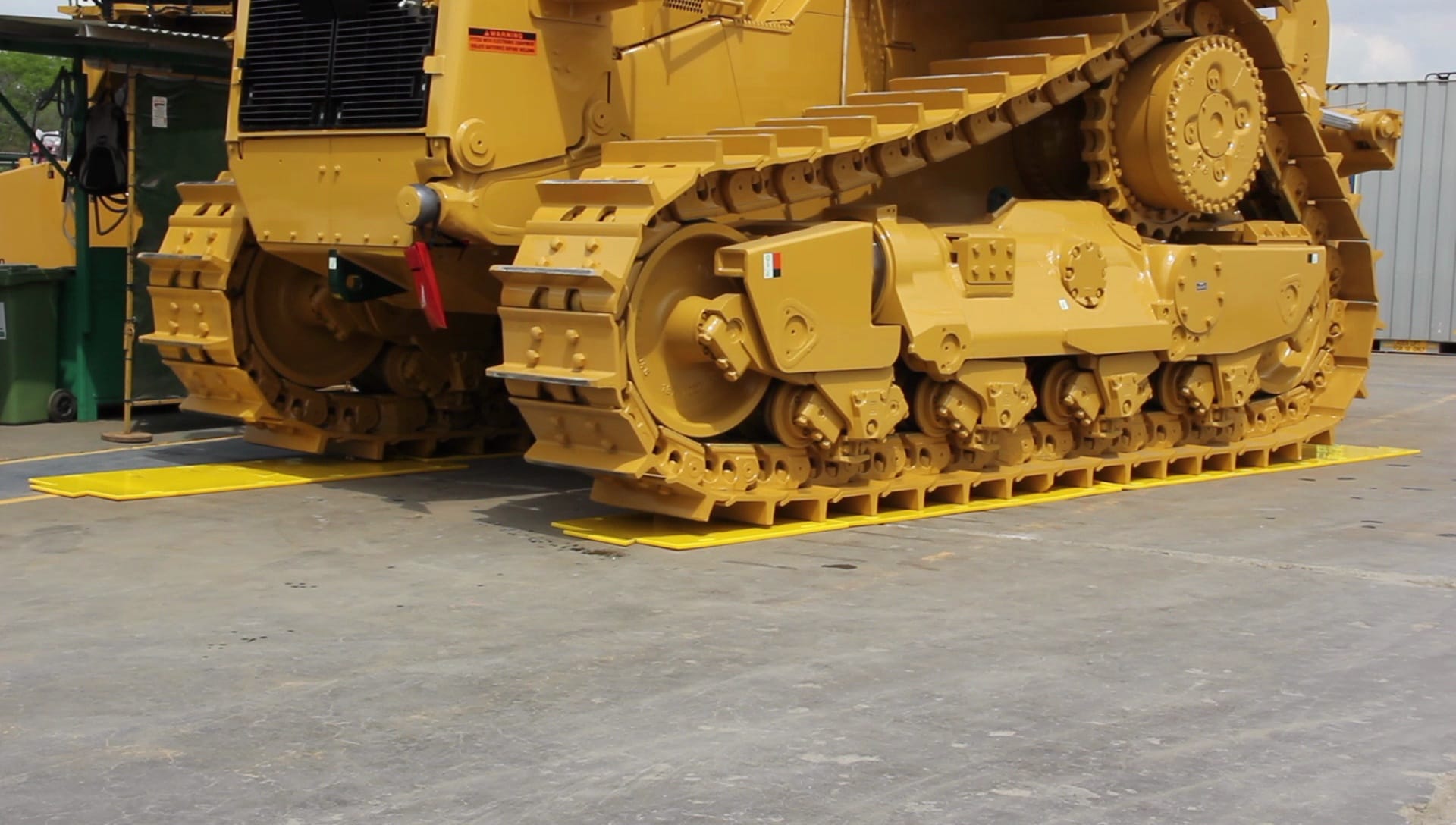

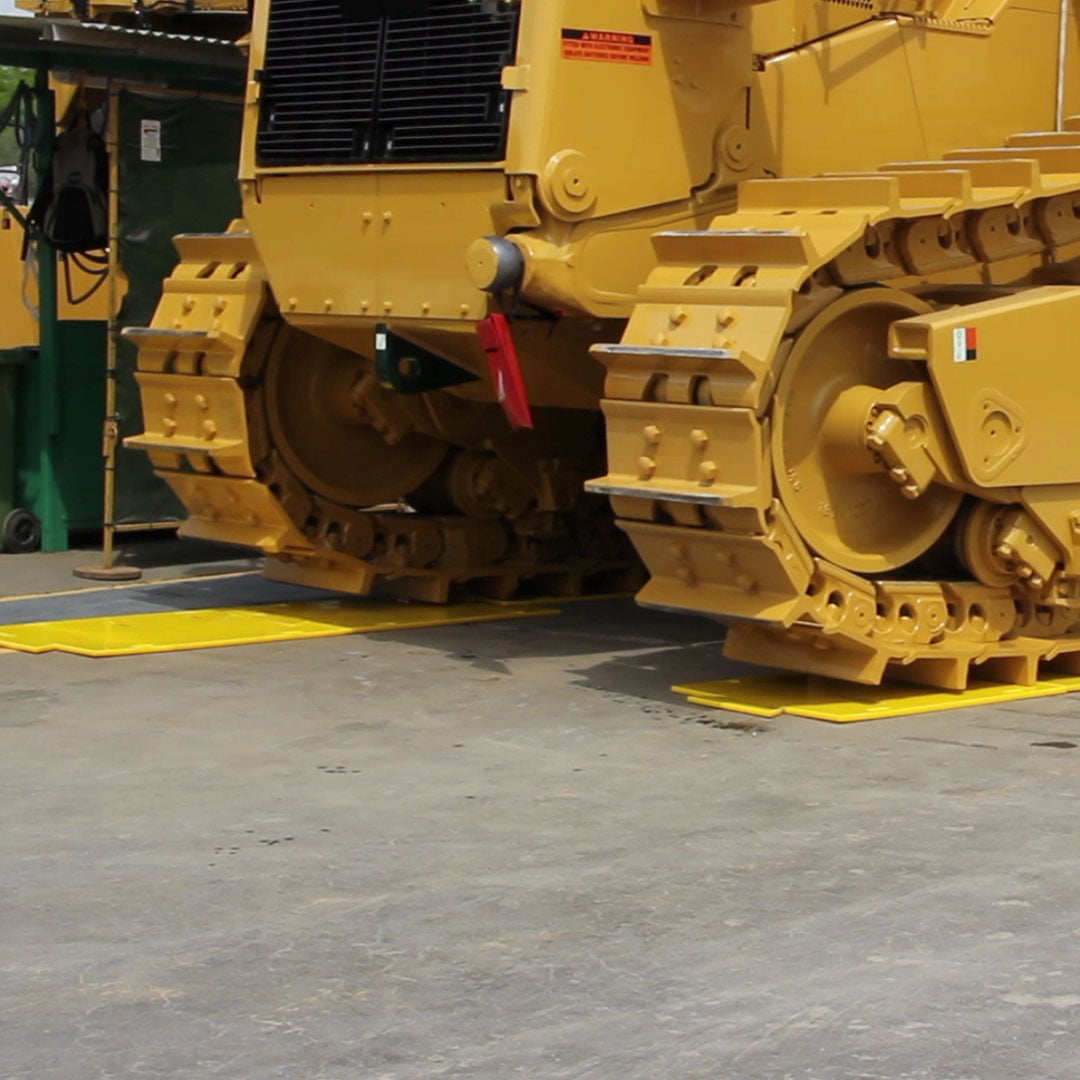

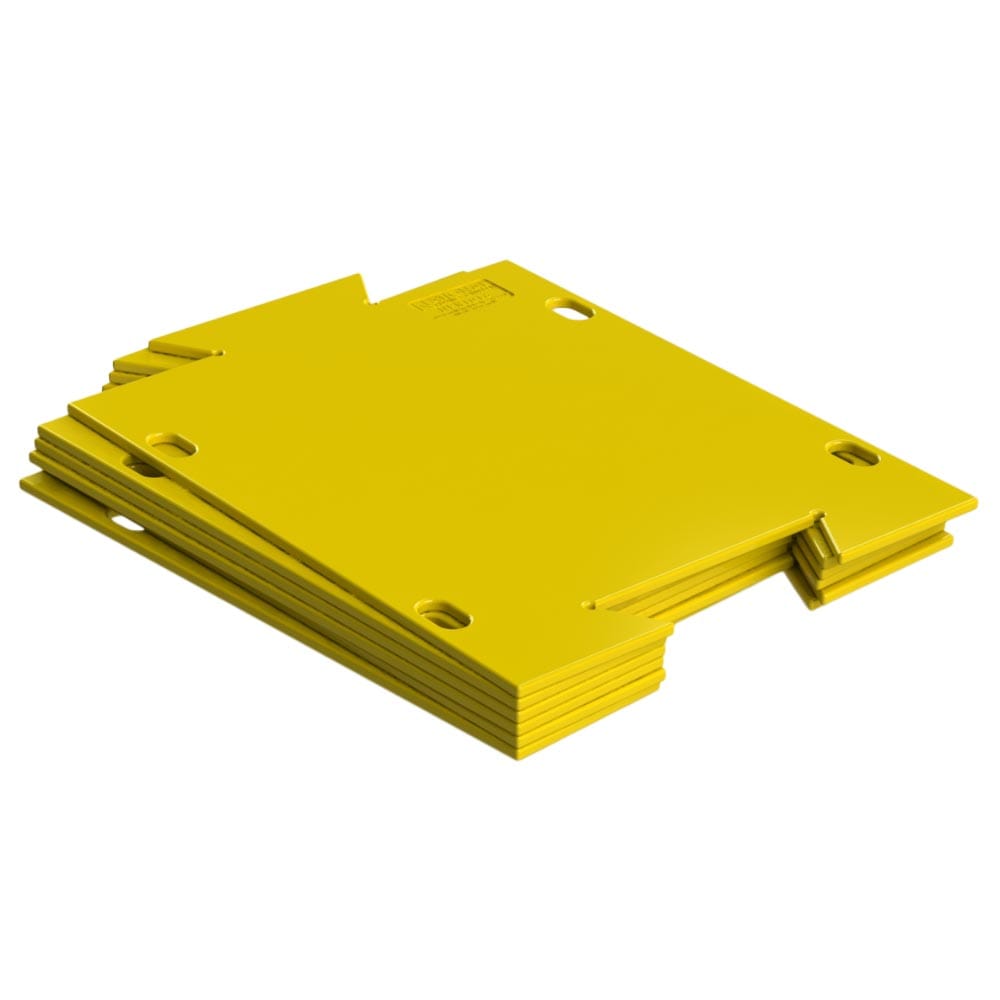

FloorDefenda™ mats: floor protection under tracked machines
FloorDefenda™ mats protect the workshop floor from the damage heavy tracked dozers and excavators cause. Each NPR01016-00 mat is 1000 × 800 × 18 mm, weighs 18 kg and is rated 100 kg/cm², and stores in its 12-mat trolley.
- NPR01016-00 · matTough polyurethane, easy to use and store.
- NPR01492-00 · trolleyHolds up to 12 mats (not included). 1110 × 740 × 823 mm, 31 kg.
- 300 kg/cm² padsRipper and blade rest on a patented high-traction surface.
Support and protection
For the maintenance of dozers and tracked machines
For dozer maintenance, NPR makes the lift stand that replaces jacks and custom stands, the D10 and D11 ripper frame cover, mats, pads and the NPR08741-00 ripper rest block. The dozer push-arm support NPR08904-00 (CAT D10 and D11, 10 t) is in the catalogue.
Dozer lift stand
250 kg · replaces jacks and stands
Ripper frame cover
D10 and D11 · 14 kg · 120 kg rated

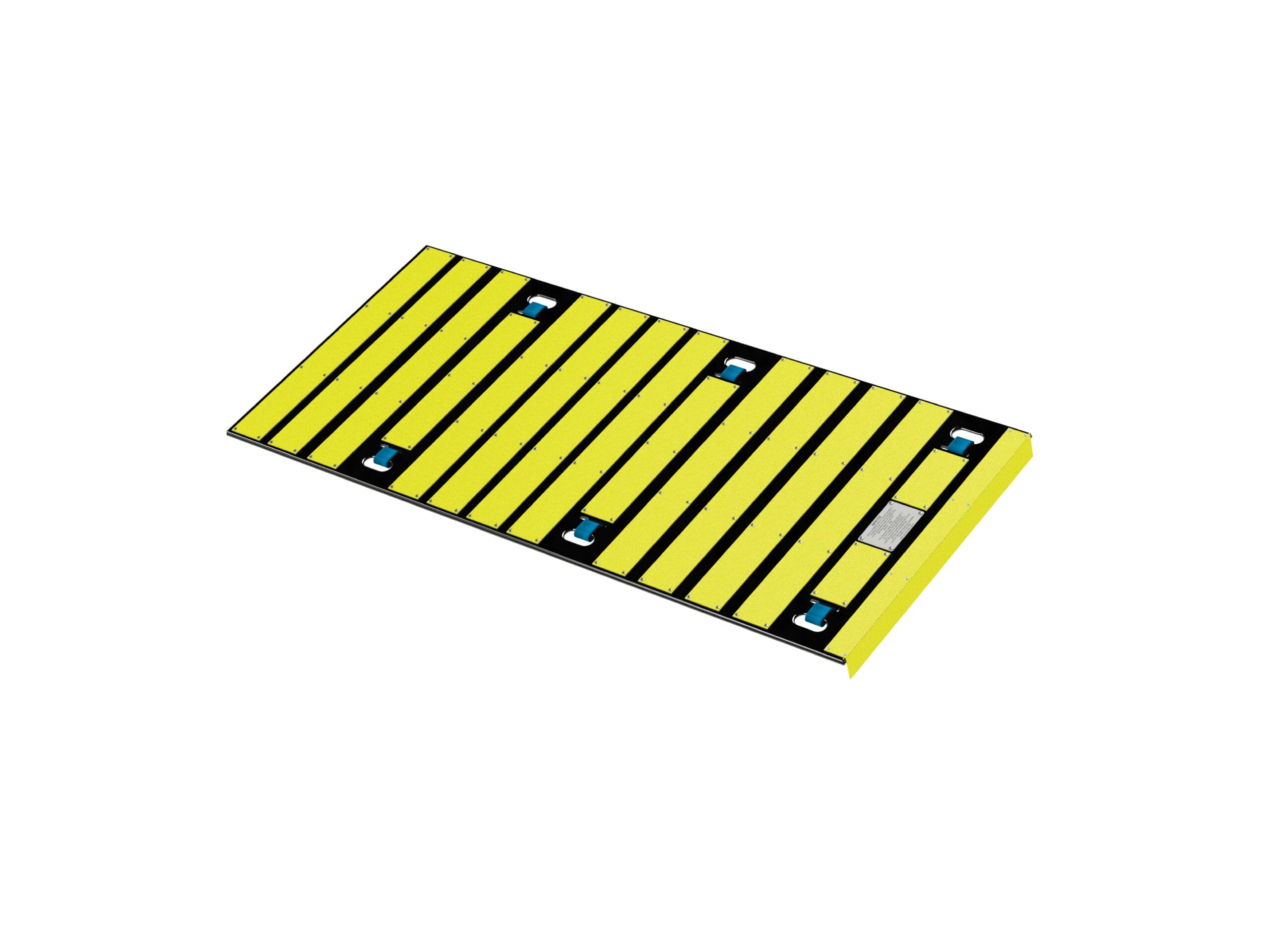

Dozer maintenance mat
1 or 2 pieces · 5 models
Workshop V-blocks
Ø120 / 250 / 400 mm
Ripper rest pad
675 × 300 × 50 mm · 300 kg/cm²
Blade rest pad
600 × 400 × 50 mm · 300 kg/cm²

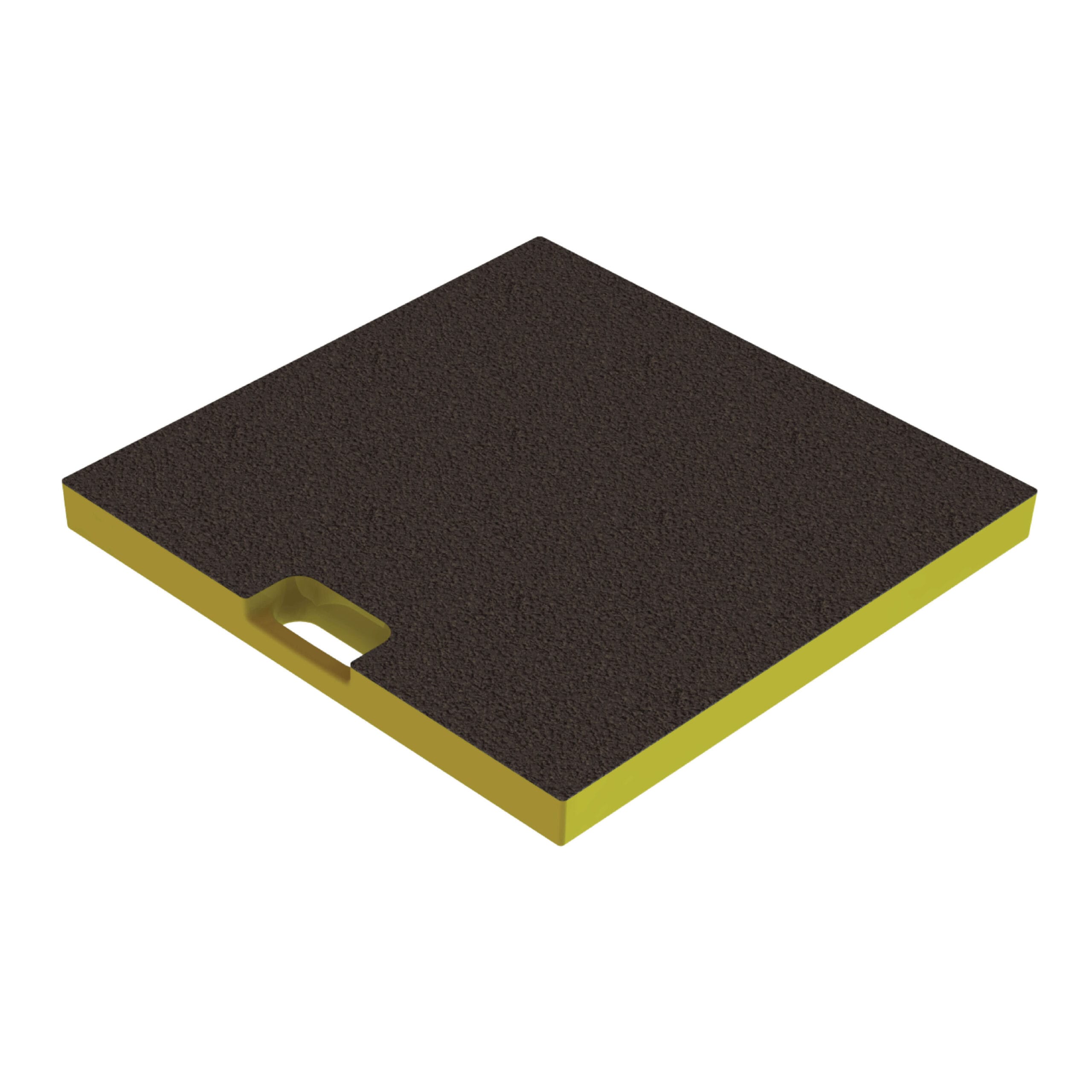

Outrigger pad
600 × 600 × 50 mm · moulded handle

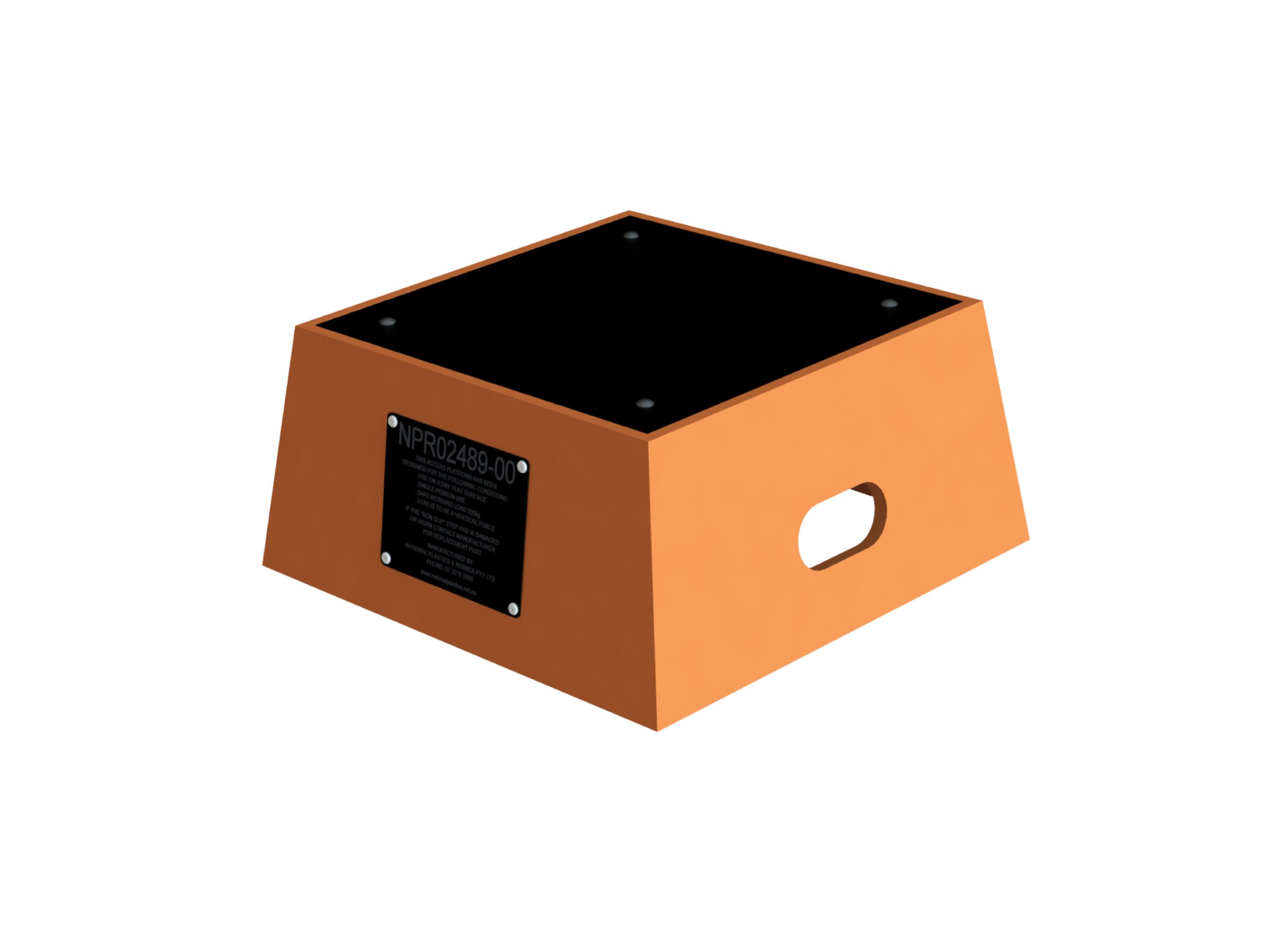

Safety Step
460 × 460 × 360 mm · 5 kg
Families 01 and 02
Workshop support and floor protection
Families 01 and 02 of NPR workshop products cover V-blocks for round components up to Ø400 mm, dozer mats by track width, FloorDefenda™ mats and ripper, blade and outrigger pads, each with size, weight and rating.
| Part no. | Product | Size | Weight | Rating |
|---|---|---|---|---|
| NPR02333-00 | Small V-block (red) | — | — | Max Ø120 mm |
| NPR02334-00 | Medium V-block (blue) | — | — | Max Ø250 mm |
| NPR02335-00 | Large V-block (yellow) | — | — | Max Ø400 mm |
| NPR02096-00 | Dozer lift stand | — | 250 kg | Forklift or chain |
| NPR08051-10 | Ripper frame cover | — | 14 kg | Up to 120 kg · D10, D11 |
| NPR00759-10 | Dozer mat · 1 piece | 720 × 1956 mm | 16 kg | Track 610–710 mm |
| NPR02122-10 | Dozer mat · 1 piece | 860 × 1200 mm | 15 kg | Track 710–810 mm |
| NPR00765-10 | Dozer mat · 1 piece | 860 × 1965 mm | 22 kg | Track 710–810 mm |
| NPR00924-10 | Dozer mat · 2 pieces | 720 × 2000 mm | 16 kg | Track 610–710 mm |
| NPR00925-10 | Dozer mat · 2 pieces | 860 × 2000 mm | 22 kg | Track 710–810 mm |
| NPR01016-00 | FloorDefenda™ mat | 1000 × 800 × 18 mm | 18 kg | 100 kg/cm² |
| NPR01492-00 | Trolley for 12 mats | 1110 × 740 × 823 mm | 31 kg | — |
| NPR00370-00 | Ripper pad · medium | 465 × 400 × 40 mm | 10.5 kg | 300 kg/cm² |

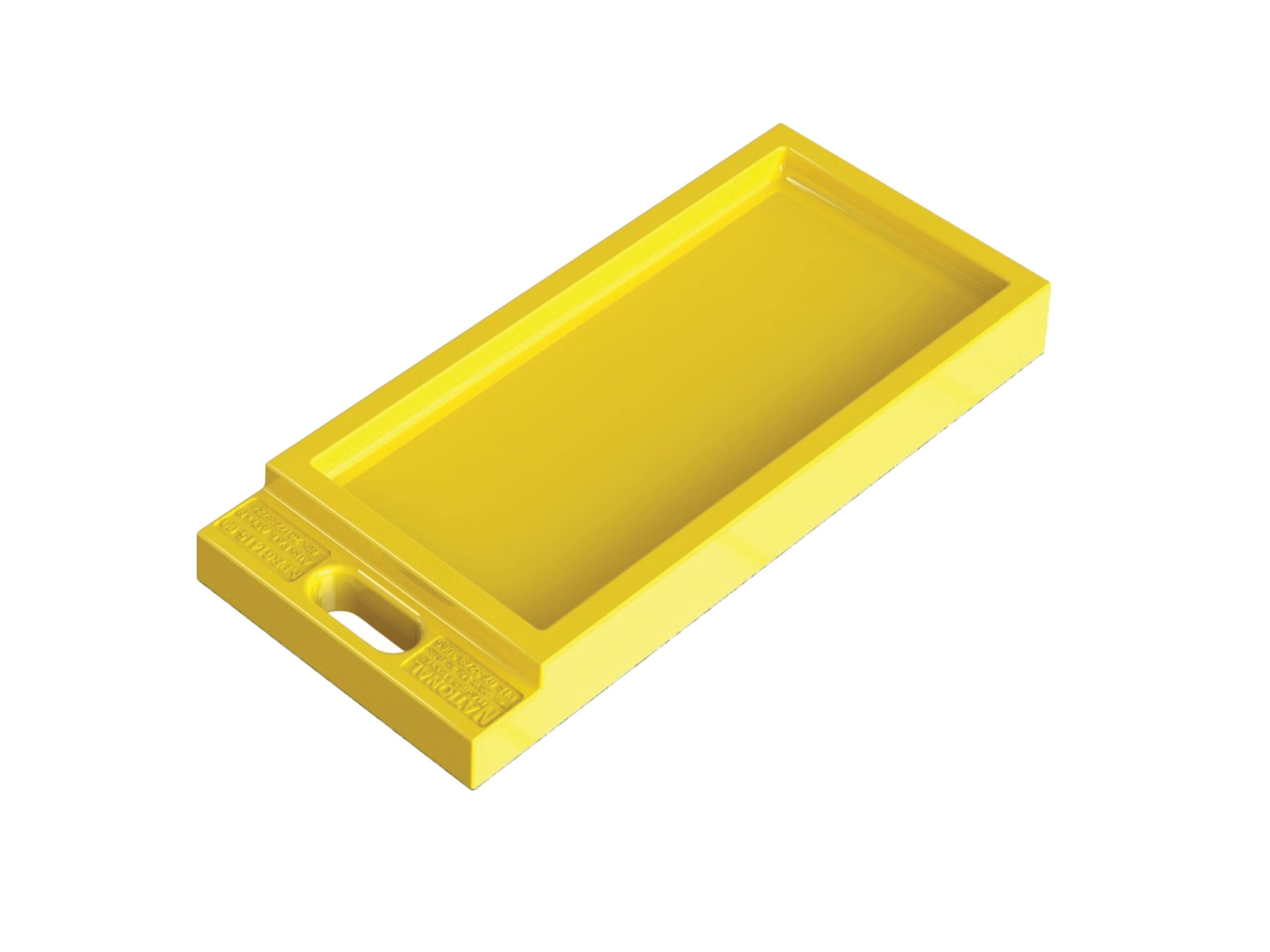

| NPR01415-00 | Ripper pad · large | 675 × 300 × 50 mm | 13 kg | 300 kg/cm² |
| NPR05745-00 | Ripper pad · wheeled | 970 × 250 × 175 mm | 21 kg | 300 kg/cm² |
| NPR08741-00 | Ripper rest block | 500 × 250 × 250 mm | 14 kg | — |
| NPR00870-00 | Blade pad · narrow | 600 × 200 × 50 mm | 7 kg | 300 kg/cm² |
| NPR01416-00 | Blade pad · wide | 600 × 400 × 50 mm | 14 kg | 300 kg/cm² |
| NPR01397-00 | Outrigger pad · moulded handle | 600 × 600 × 50 mm | 24 kg | 300 kg/cm² |
| NPR02398-00 | Outrigger pad · stackable | 490 × 490 × 83 mm | 12 kg | 30 kg/cm² |
Patented high-traction surface: Australian patent no. 2017228727.
Family 03
Covers for cables and hoses
NPR cable and hose covers are polyurethane crossings that protect cabling and organise foot and vehicle traffic in the workshop and on site, from the light-duty hinged lid to the dragline cover for trucks up to 630 t GVM.
| Part no. | Product | Size | Channels | Weight |
|---|---|---|---|---|
| NPR01089-00 | Hinged lid · light duty | 1200 × 525 × 55 mm | 4 · 40 × 40 mm | 21 kg |
| NPR01091/92-00 | Male / female end caps for hinged lid | — | — | 5 kg |
| NPR00699-00 | Light service crossover | 1200 × 600 × 50 mm | 2 · 90 × 38 mm | 17.5 kg |

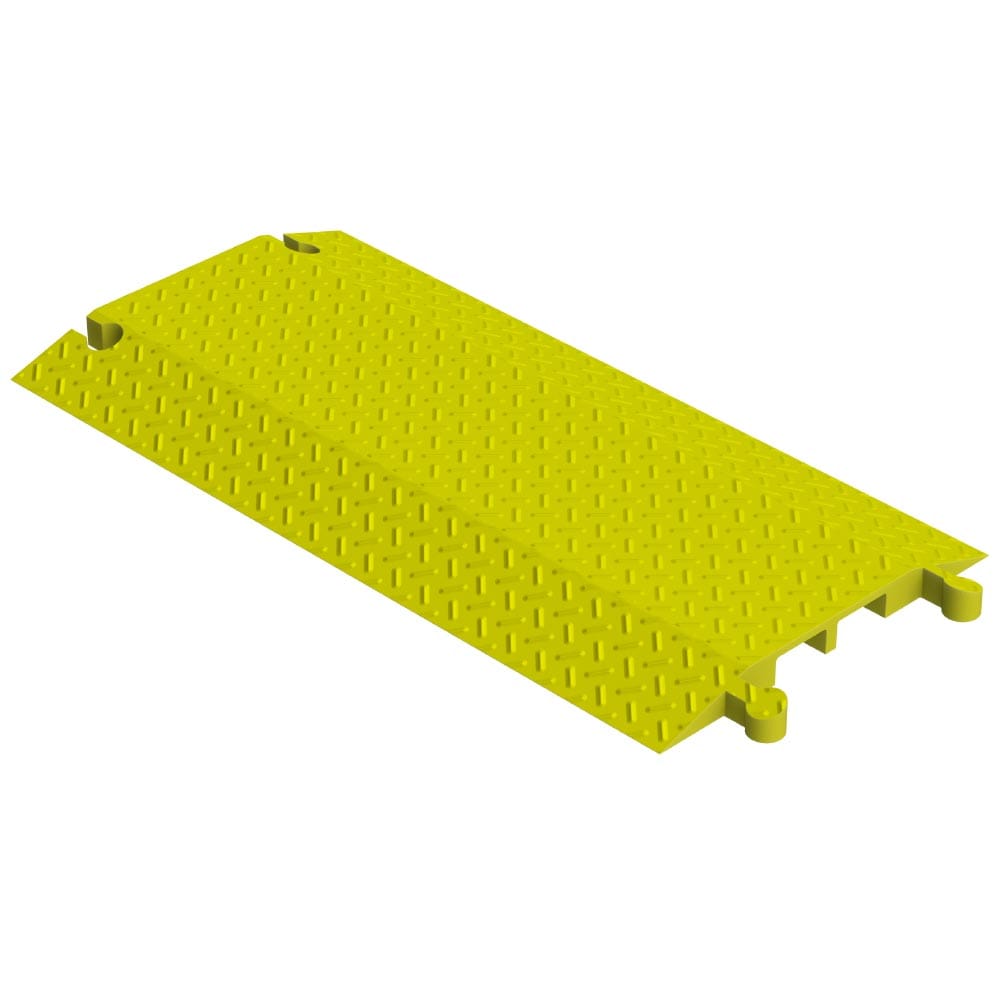

| NPR00716-00 | Medium service crossover · cables up to Ø110 mm | 1200 × 600 × 50 mm | 2 · 90 × 38 mm | 23.5 kg |
| NPR00713/14-00 | Male / female end caps for crossover | — | — | 4 kg |
| NPR01628-00 | Dragline cover · heavy duty, 2 m | 2000 × 2000 × 200 mm | Cable up to Ø120 mm | — |
| NPR01630-00 | Dragline cover · heavy duty, 4 m | 4000 × 2000 × 200 mm | Cable up to Ø120 mm | — |
| NPR06004-00 | Track guide pad · CAT D10 | — | — | — |
| NPR07823-00 | Track guide pad · CAT D11 | — | — | — |
| NPR08198-00 | Battery cradle for 60 kg N200 | 570 × 315 × 370 mm | 100 kg limit | 11.14 kg |
| NPR02373-00 | Trolley for 6 cable covers | — | — | — |
| NPR02374-00 | Trolley for 4 dozer mats | — | — | — |
The heavy-duty cover is made in orange for visibility and takes trucks up to 630 t GVM. The battery cradle is tested to AS1170.0, AS1170.1 and AS1554.6.
Trucks, identification and safety
Polyurethane parts for haul trucks
For haul trucks, NPR makes parts that replace steel, such as the MattCap for Komatsu 730E and 830E, 75% lighter than the steel hub cap, plus breathers, fuel cap, FlexiFlap™ mudflaps, number boxes and stud protectors.
MattCap
Komatsu 730E and 830E · 75% lighter than steel
Fuel cap
7 kg · horizontal hinge · Komatsu 830
Rear differential breather
Caterpillar 795 · 6.4 kg
FlexiFlap™
PVC mudflap · 7 mm · 9 kg/m²
Roof number box
Triangle · 500 × 500 mm · reflective
Hanging number plate
600 × 510 mm · stainless bar
E-stop cover
Schneider XALK174 · dust and moisture
Stud protectors
CAT 793 · colour coded
Families 04, 05 and 06
Trucks, identification and safety
| Part no. | Product | Fits | Detail |
|---|---|---|---|
| NPR06069-00 | Breather vents · long kit | Komatsu 930E | 16 kg |
| NPR05448-00 | Breather vents · short kit | Komatsu 930E | 16 kg |
| NPR02395-00 | Rear differential breather | Caterpillar 795 | 6.4 kg |
| NPR06035-00 | MattCap · 1 cap, 3 sight glasses, 1 magnetic plug | Komatsu 730E, 830E | 75% lighter |
| NPR08192-00 | Fuel cap | Komatsu 830 | 7 kg |
| NPR00603-00 | FlexiFlap™ · per linear metre | 1830 mm wide | 7 mm |
| NPR00602-00 | FlexiFlap™ · 30 m roll | 1830 mm wide | 7 mm |
| NPR01097-00 | FlexiFlap™ · 30 m roll | 1200 mm wide | 7 mm |
| NPR01677-00 | Triangle roof box | — | 500 × 500 mm |
| NPR01606-00 | Triangle roof box | — | 500 × 325 mm |
| NPR01667-00 | Triangle box and frame | — | 500 × 500 mm |
| NPR01604-00 | Triangle box and frame | — | 500 × 325 mm |
| NPR07658-00 | Triangle box · magnetic mount | — | 500 × 500 mm |
| NPR06120-00 | Triangle box · magnetic mount | — | 500 × 325 mm |
| NPR07603-00 | Triangle box · BMA specific, 400 mm digits | — | 875 × 600 mm |
| NPR01394-00 | Blue hanging plate · 600 mm | — | 600 × 510 × 16 mm |
| NPR00816-00 | Blue hanging plate · 1200 mm | — | 1200 × 1020 × 25 mm |
| NPR01487-00 | Yellow hanging plate · 600 mm | — | 600 × 510 × 16 mm |
| NPR01486-00 | Yellow hanging plate · 1200 mm | — | 1200 × 1020 × 25 mm |
| NPR02143-00 | Yellow panel · no bar | — | 1150 × 400 × 25 mm |
| NPR01715-00 | Door latch cover | AH-838 | — |
| NPR02251-00 | Door latch cover | CT-1178 | — |
| NPR01822-00 | E-stop cover | Schneider XALK174 | — |
| NPR02053-00 | E-stop cover | Schneider XAPM1316H29 | — |
| NPR07014-00 | Stud protector · yellow | Caterpillar 793 | — |
| NPR06551-00 | Stud protector · orange | Caterpillar 785, 789 · Kress | — |
| NPR06634-00 | Stud protector · blue | Kress | — |
| NPR06635-00 | Stud protector · green | Caterpillar 773, 777 | — |
| NPR06641-00 | Stud protector · yellow | Caterpillar 795, 797 | — |
| NPR01702-00 | Safety Step · medium duty | — | 460 × 460 × 360 mm · 5 kg |
| NPR00461-00 | Safety Step · heavy duty | — | 500 × 500 × 380 mm · 13 kg |
| NPR07467-00 | Lightweight rim cleats | — | — |
Stud protectors: minimum order 2,000 units. Body pads for Caterpillar, Komatsu and Terex and the anti-slip stair kit are quoted for your equipment model.
In the workshop
NPR products in use
NPR pads under a dozer blade, maintenance mats and body pads on haul trucks. To support heavy components in the workshop, the line is completed by Stacko™ and Timba™ blocks; more in support blocks for mining equipment maintenance.
FAQ
Workshop products FAQ
Which mining workshop products does NPR make?+
What is FloorDefenda™?+
Which pads take the dozer ripper and blade?+
What is the dozer push-arm support?+
Which cable cover do I need?+
Which NPR parts fit Komatsu and Caterpillar trucks?+
Do you have NPR products not listed here?+
Where can I buy NPR workshop products in Peru?+
Lines with their own sheet
More NPR mining products
Stacko™
Interlocking towers up to 60 t and 150 cm.
Learn more
MineChock™
Workshop chock positioned standing, with a handle.
Learn more
NevaFail™
LED equipment number with fail-safe reflective backing.
Learn more
Catálogo NPR
The full NPR line with part numbers.
Learn moreQuote
Quote NPR workshop products
Send us the part numbers or tell us the equipment and maintenance task. We send you the workshop products brochure and the quote.
