HoseMate™: hydraulic hose separators

HoseMate™ is a hydraulic hose separator that keeps each hose on its route and stops external abrasion, one of the main causes of hose failure on mining equipment. 11 sizes, 13 to 100 mm. Made by NPR in Australia, distributed in Peru by Endeavant.

Highly Commended · QLD Mining Health & Safety Conference 2023
Get the data sheetWhatsApp

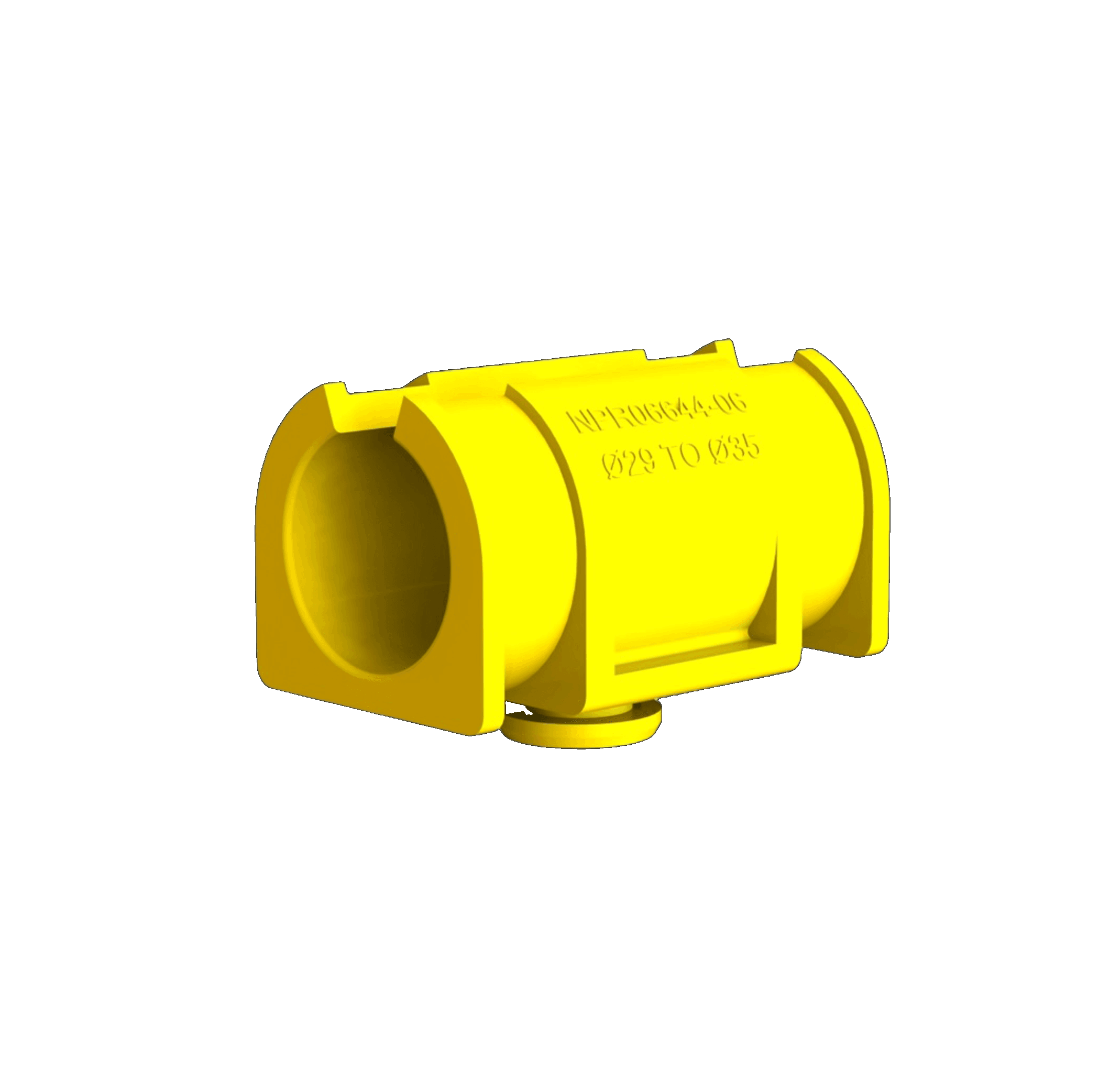

Yellow HoseMate™ separator
Sizes
11
Outside diameter
13–100mm
Hose rotation
360°
Vibration cycles
6.8million
Exposed hydraulic hoses on a mining machine

The problem

External abrasion, the third cause of mobile plant breakdowns

Hydraulic hose failures are the third most common cause of mobile plant breakdowns, and most come from external abrasion: hose against hose and hose against surface. The HoseMate™ separator secures correct routing and spacing. More in hydraulic hose protection in mining.

  • Stops external abrasionAgainst sharp edges, other hoses, flat surfaces and moving parts.
  • 360° rotationHolds hoses of different widths without compromising their use.
  • V2 thermopolymer, UV resistantFire-resistance rating for demanding duty.
  • Simple installNo special tools and no extra weight on the machine.

Operational benefits

Longer life for hydraulic hoses

By stopping external abrasion, HoseMate™ prevents hydraulic hose failures and bursts, cuts maintenance and oil spills and raises machine availability, without compromising hose flexibility.

Prevents failures and bursts

Protects the hose before damage happens.

Less maintenance

Lower cost and less planned and unplanned downtime.

More availability

No lost production or idle labour hours.

Fewer oil spills

Cuts environmental risk and the related clean-ups.

Reusable and recyclable

In most cases it outlasts the hose; the thermopolymer can be shredded for recycling.

Optimal hose use

Protection does not compromise flexibility or performance.

Size guide

Eleven sizes by outside diameter

The HoseMate™ size is chosen by the hose's real outside diameter, 13 to 100 mm across 11 sizes. Do not infer it from the inside diameter, since wall thickness varies by application. Each size comes single or in a 10-pack, also listed in the NPR catalogue.

Outside diameterHoseMate™ singleHoseMate™ 10-pack
13–16 mmNPR06644-02NPR16644-02
16–20 mmNPR06644-03NPR16644-03
20–24 mmNPR06644-04NPR16644-04
24–29 mmNPR06644-05NPR16644-05
29–35 mmNPR06644-06NPR16644-06
35–42 mmNPR06644-07NPR16644-07
42–51 mmNPR06644-08NPR16644-08
51–61 mmNPR06644-09NPR16644-09
61–72 mmNPR06644-10NPR16644-10
72–86 mmNPR06644-11NPR16644-11
86–100 mmNPR06644-12NPR16644-12

Installation accessories

Joiner, pliers and tension straps

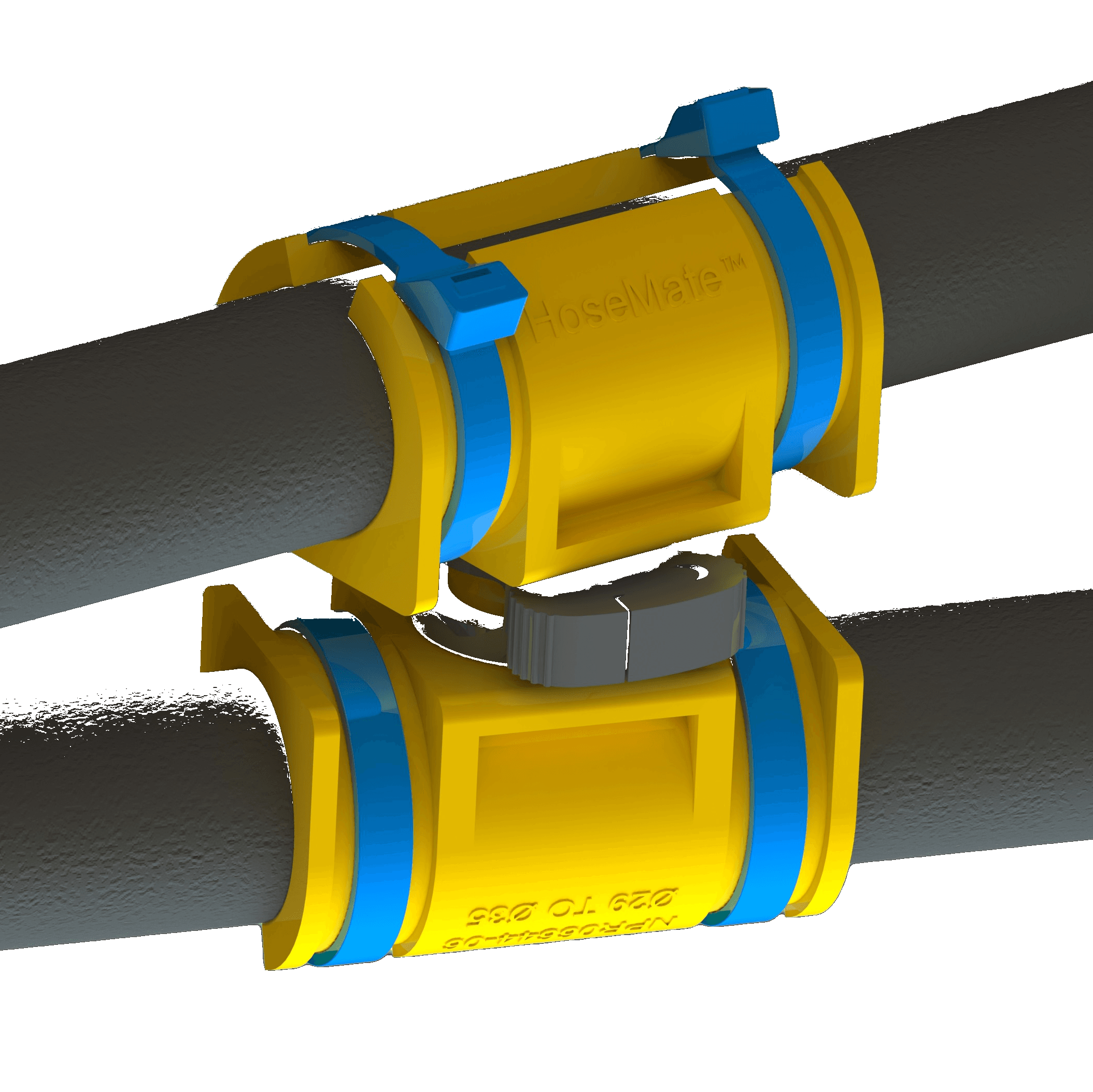

One HoseMate™ assembly takes 2 separators, 1 joiner, Multigrip pliers, 4 tension straps and the strap cutter. Straps × 100: NPR17910-00 for sizes -02 to -06 and NPR17911-00 for -07 to -10.

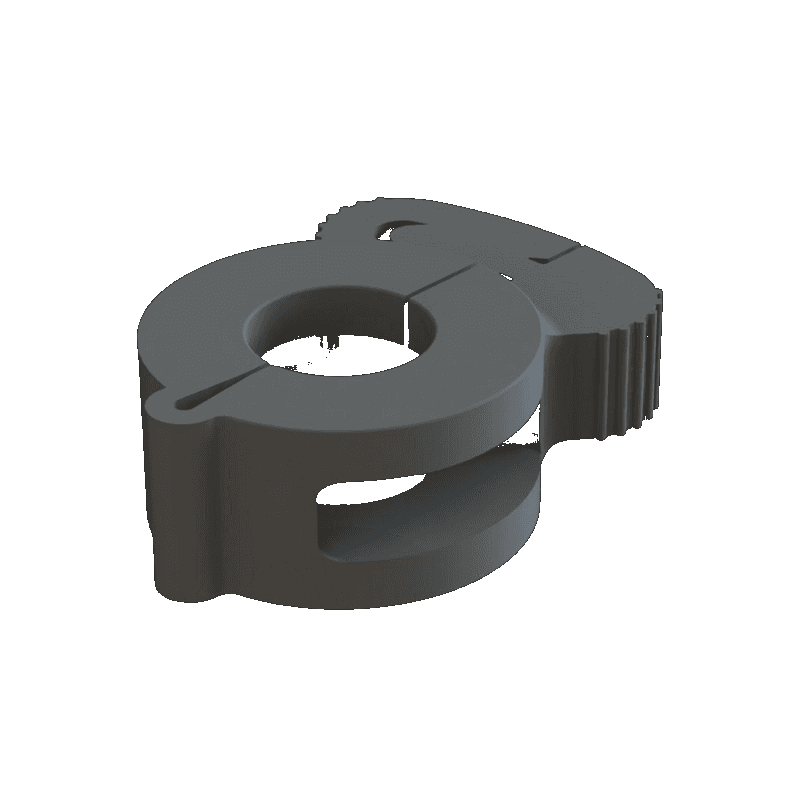

Joiner
NPR06644-01

Joiner

Joins both ends of the assembly

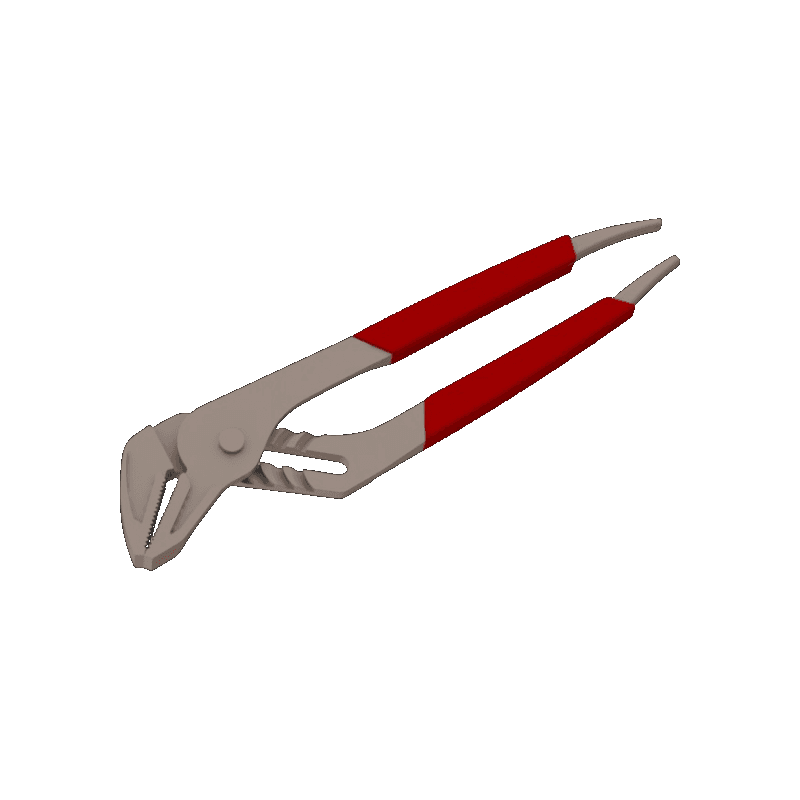

Multigrip pliers
NPR07937-00

Multigrip pliers

Close the joiner

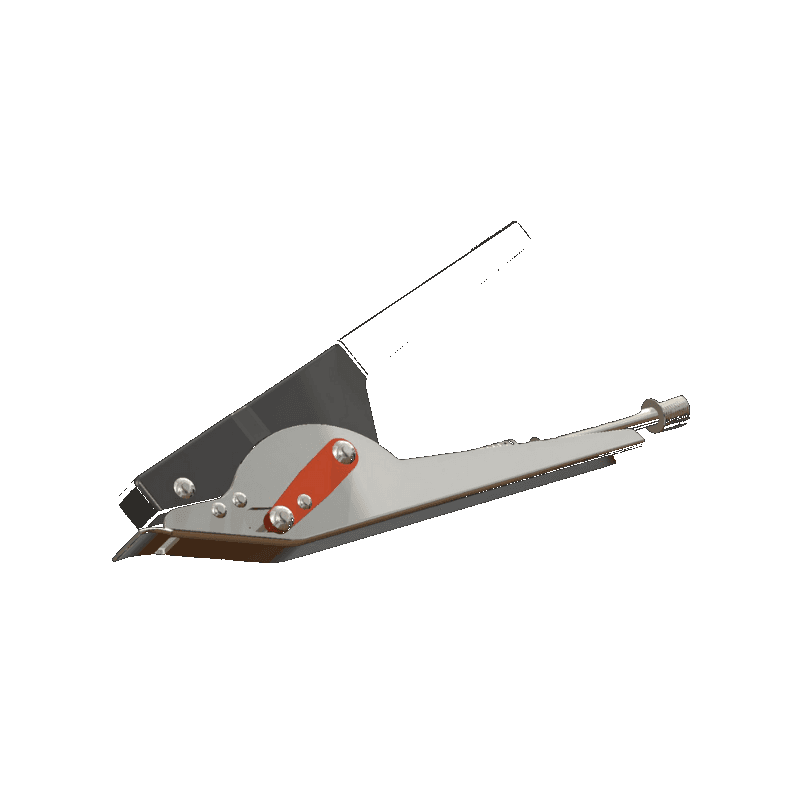

Strap cutter
NPR07939-00

Strap cutter

Trims excess strap

Installation

Installation in six steps

HoseMate™ installs with no special tools and no major work on the machine: measure the hose, hook it into the separator, close the joiner and secure it with two tension straps.

01

Measure

The hose outside diameter, in mm.

02

Pick the size

From the size guide.

03

Fit

Hook each hose into the separator body.

04

Join

Join both ends in the joiner and close it with the pliers.

05

Secure

Two straps per HoseMate™: firm, not over-tight.

06

Finish

Trim excess strap with the cutter.

Validation

Tested in extreme conditions

HoseMate™ went through a test regime designed to replicate the harshest operating environments: sustained vibration, immersion in machine fluids, cold at −35 °C and heat at 90 °C under load.

6.8M cycles
Vibration at 900 cycles per minute, sustained.
Vibration
5days
Immersed in hydraulic oil, engine oil, coolant, truck wash and degreaser.
Chemicals
−35°C
In ice for 4 hours, under load.
Cold
90°C
In an oven for 1 hour, under load. V2 fire rating.
Heat

Field evidence

HoseMate™ on mining equipment

Real HoseMate™ installs on haul trucks and mining machines: hoses that used to rub against each other, now with secured routing. For cable and hose crossings on the workshop floor there are the NPR workshop crossover covers.

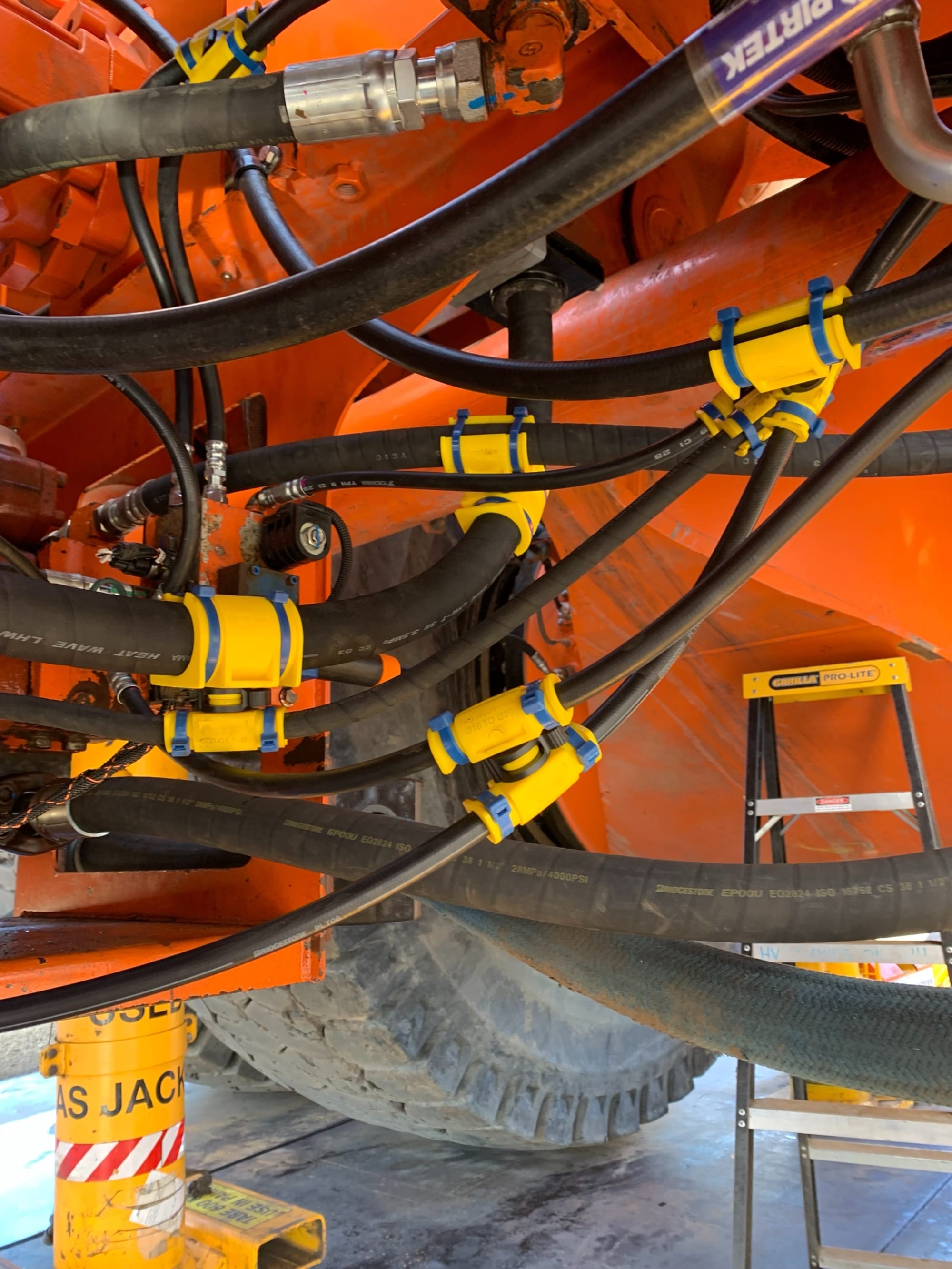

Hydraulic hoses routed with HoseMate™

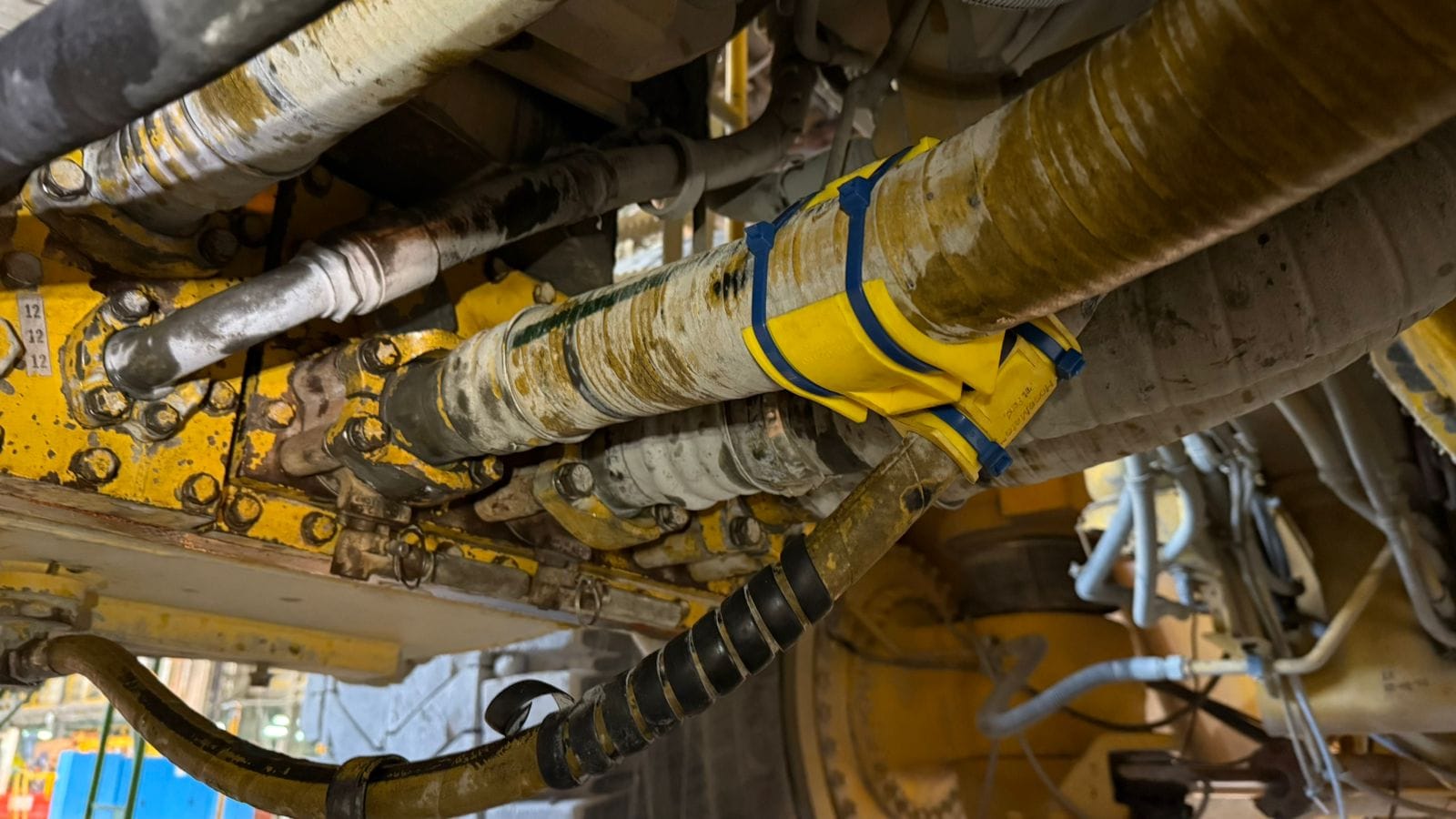

HoseMate™ separators with blue straps on truck hoses

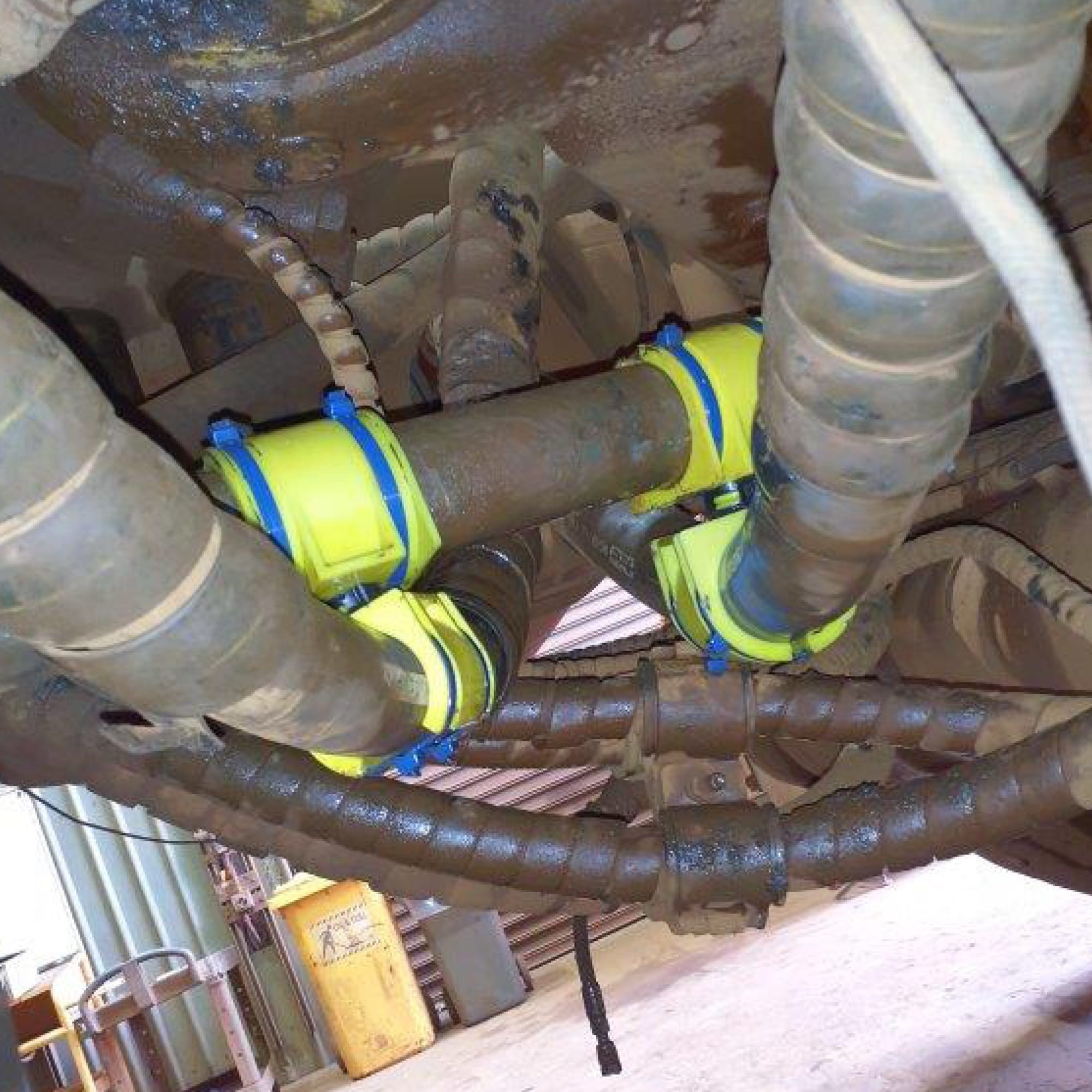

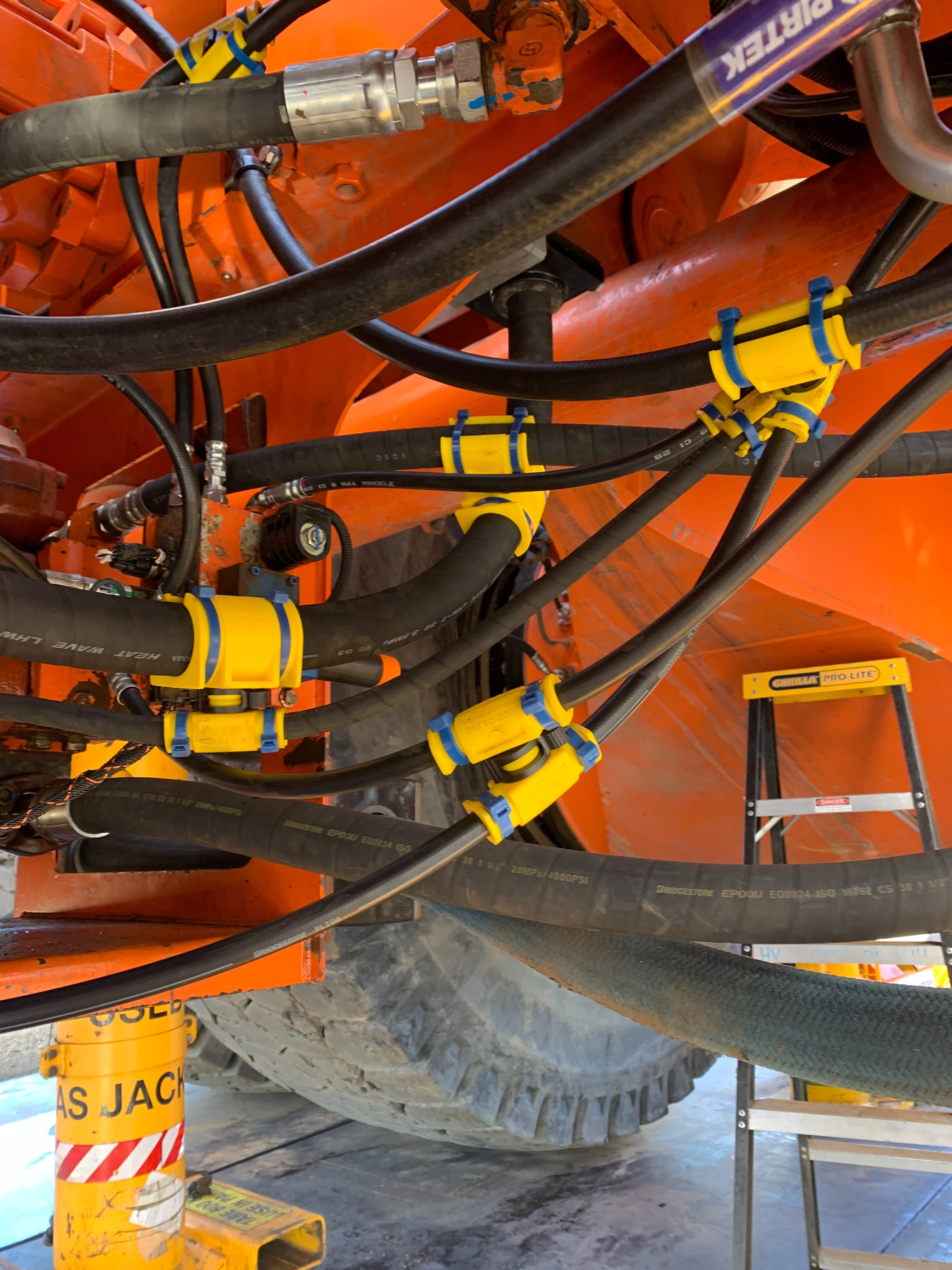

HoseMate™ fitted to the hose run of an orange machine

Video

HoseMate™ hydraulic hose separators

FAQ

HoseMate™ FAQ

What is HoseMate™?
HoseMate™ is a hydraulic hose separator made by National Plastics & Rubber in Brisbane, Australia. It clips onto the exposed hoses of mining equipment to keep them on their route and apart, stopping external abrasion against other hoses, sharp edges, flat surfaces and moving parts, while letting each hose rotate 360°.
Why do hydraulic hoses fail on mining equipment?
Hose failures are the third most common cause of mobile plant breakdowns, and most of them come from external abrasion: hose against hose and hose against surface. A HoseMate™ separator tackles that cause by securing correct routing and spacing, which cuts oil spills and downtime.
How do I pick the HoseMate™ size?
Measure the hose's real outside diameter and pick the HoseMate™ size that contains it: there are 11, from 13–16 mm (NPR06644-02) to 86–100 mm (NPR06644-12), single or in 10-packs (NPR16644-xx). Do not work it out from the inside diameter, as hose wall thickness varies by application.
What is HoseMate™ made of?
HoseMate™ is made of a thermopolymer with a V2 fire-resistance rating and UV resistance, adding no unnecessary weight to the machine. The tension straps that secure it are also V2, heat- and UV-stabilised. At end of life, the thermopolymer clamp can be shredded for recycled products.
What tests has HoseMate™ passed?
HoseMate™ was tested at 900 cycles per minute of vibration for 6.8 million cycles, immersed for 5 days in hydraulic oil, engine oil, coolant, truck wash and degreaser, 4 hours in ice at −35 °C and 1 hour in an oven at 90 °C, all under load. It was Highly Commended at the 2023 Queensland Mining Health & Safety Conference.
What do I need to install HoseMate™?
Each HoseMate™ assembly takes 2 separators, 1 NPR06644-01 joiner, NPR07937-00 Multigrip pliers, 4 tension straps (NPR17910-00 or NPR17911-00 by size) and the NPR07939-00 cutter. No special tools or major work are needed: each separator is secured with 2 firm straps, not over-tightened.
Can HoseMate™ be reused?
Yes. In most cases HoseMate™ outlasts the hydraulic hose it protects and is reused on the next job when the hose is replaced. At end of life the thermopolymer can be shredded for recycled products, and by preventing failures it cuts spills and the related clean-ups.
Where can I buy HoseMate™ separators in Peru?
Endeavant S.A.C., in Miraflores, Lima, distributes National Plastics & Rubber products in Peru, with all 11 HoseMate™ sizes and the installation accessories, and serves mining operations across the country. Tell us the machine and your hoses' outside diameters and we will quote sizes and accessories.

Also for your equipment

More NPR maintenance products

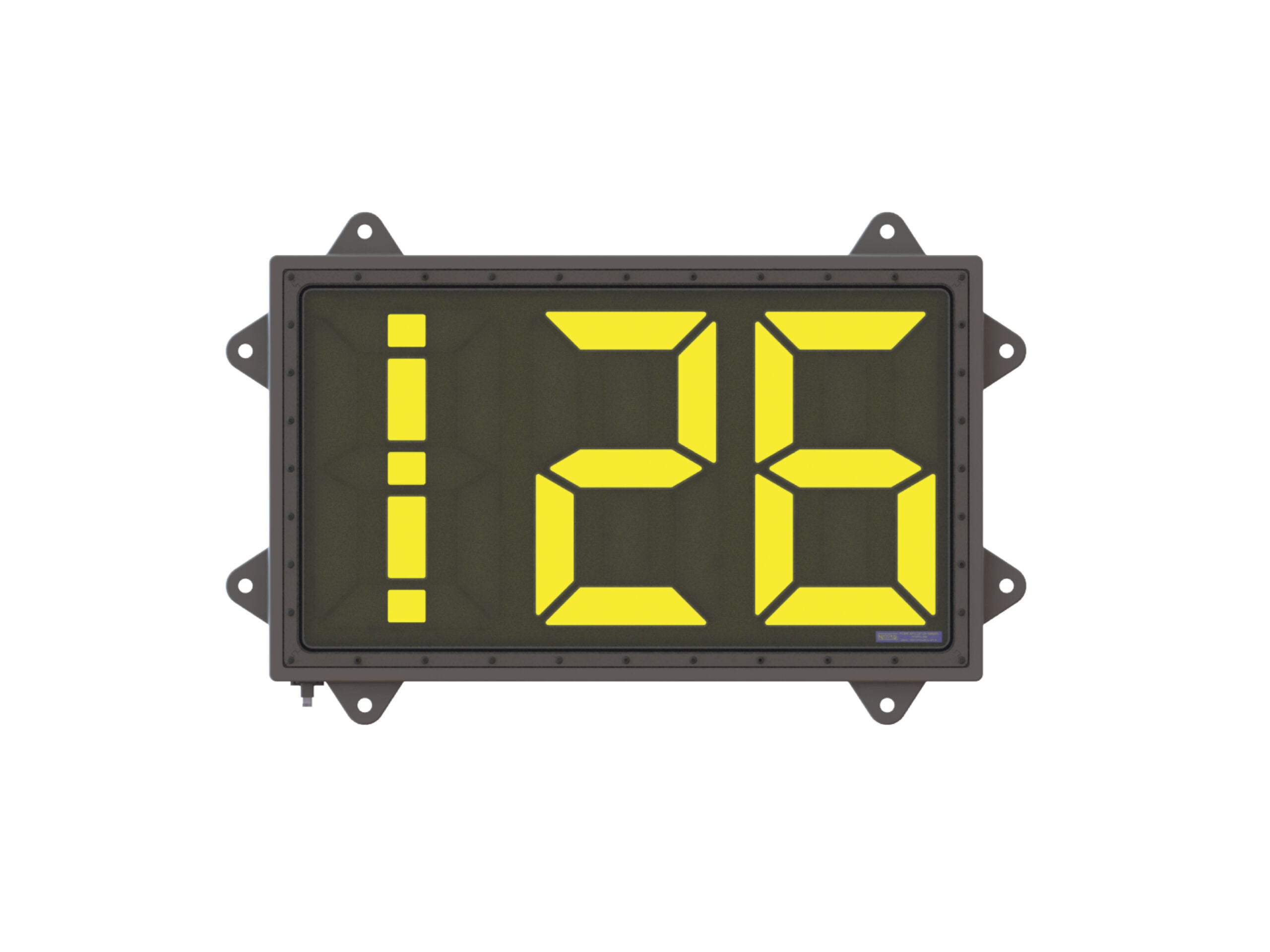

NevaFail™
